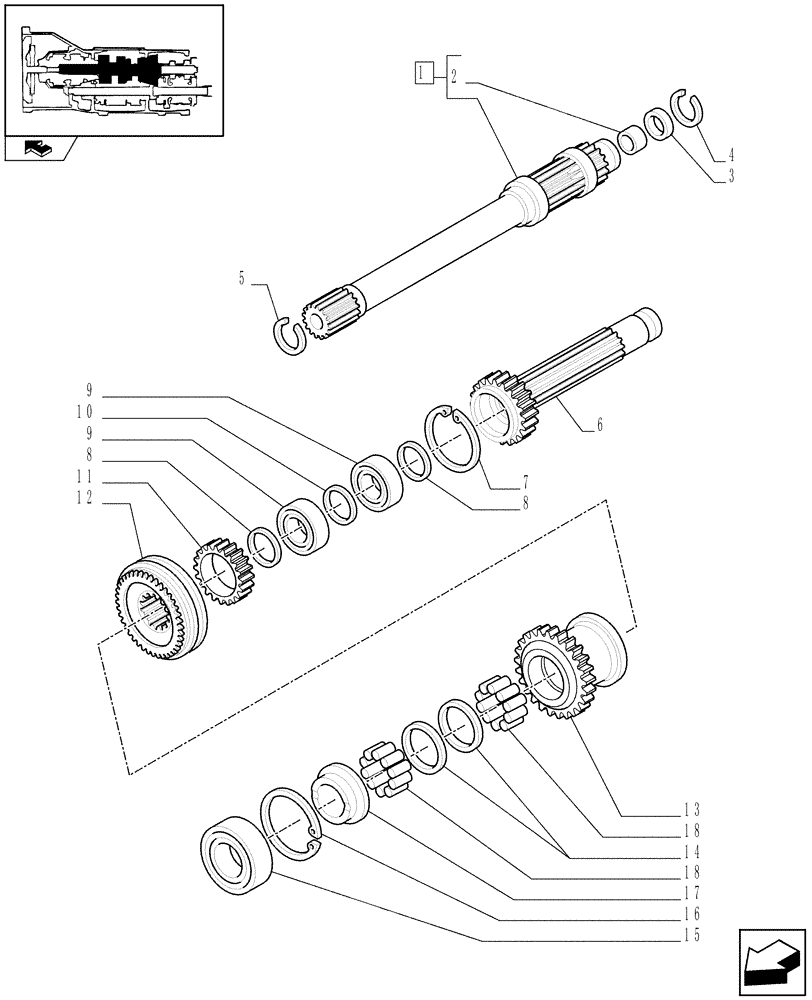

Запчасти Case IH FARMALL 90 (1.28.1[01]) - GEARBOX GEARING - DRIVE SHAFT AND GEARS (03) - TRANSMISSION

1

5089358

CLUTCH INPUT SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

4

11068876

SNAP RING,M40, Ext

1шт.

5

5135061

CIRCLIP,M45, Ext

3шт.

6

5161817

MAIN SHAFT

1шт.

7

11070876

CIRCLIP,M80, Ext

1шт.

8

5143461

WASHER,40.1mm ID x 56mm OD x 3mm Thk

2шт.

9

47134157

BALL BEARING,40mm ID x 68mm OD x 15mm W

2шт.

10

5088424

SHIM KIT

1шт.

10

5161824

SPACER

13mm Thk

1шт.

10

5161880

SPACER

13,2mm Thk

1шт.

10

5161881

SPACER

13,4mm Thk

1шт.

10

5161882

SPACER

13,6mm Thk

1шт.

11

5143460

SLEEVE

1шт.

12

5186629

SYNCHRONIZER

Forward/Reverse

1шт.

13

5164583

DRIVEN GEAR

Reverse Drive Gear 26 Teeth

1шт.

14

5137224

WASHER,54.7mm ID x 59.3mm OD x 1.5mm Thk

2шт.

15

87302536

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

16

11062176

CIRCLIP,M85, Int

1шт.

17

5137222

SPACER,45.1mm ID x 70mm OD x 20.5mm L

1шт.

18

5137225

NEEDLE BEARING CAGE,52mm ID x 57mm OD x 17mm W

2шт.
