(1.27.7) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - OIL COOLER (VAR.330120-331120)

Запчасти Case IH FARMALL 90 (1.27.7) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - OIL COOLER (VAR.330120-331120) (03) - TRANSMISSION

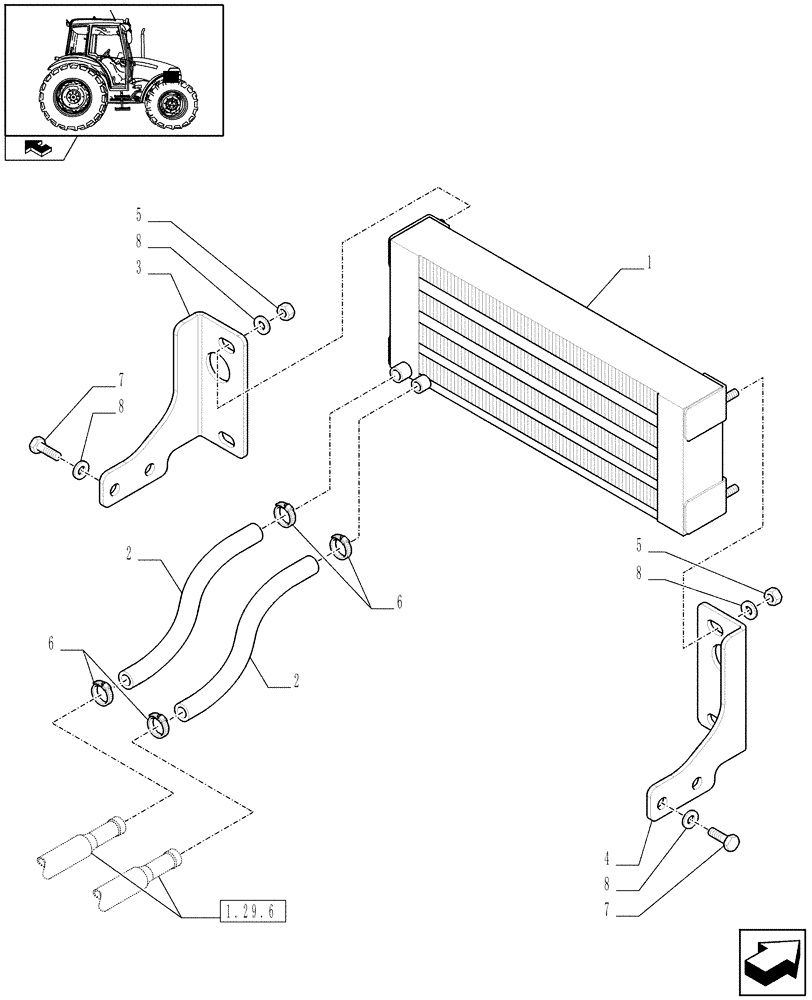

Схема запчастей Case IH FARMALL 90 - (1.27.7) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - OIL COOLER (VAR.330120-331120) (03) - TRANSMISSION
5
4
1.29.6
8
3
home
8
7
8
5
2
7
2
8
6
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87541745

OIL COOLER

1шт.

2

84408310

LARGE HOSE

HOSE,LARGE

2шт.

3

84408304

SUPPORT

LH

1шт.

4

84408305

SUPPORT

RH

1шт.

5

10720114

NUT,Hex, M6 x 1

4шт.

6

87557209

CLAMP,16mm - 27mm

4шт.

7

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

8

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

8шт.

Выбрано товаров: 8
