Запчасти Case IH FARMALL 90 (1.26.2/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO CLUTCH CONTROLSAND LEVER LINK (VAR.330120-331120) (03) - TRANSMISSION

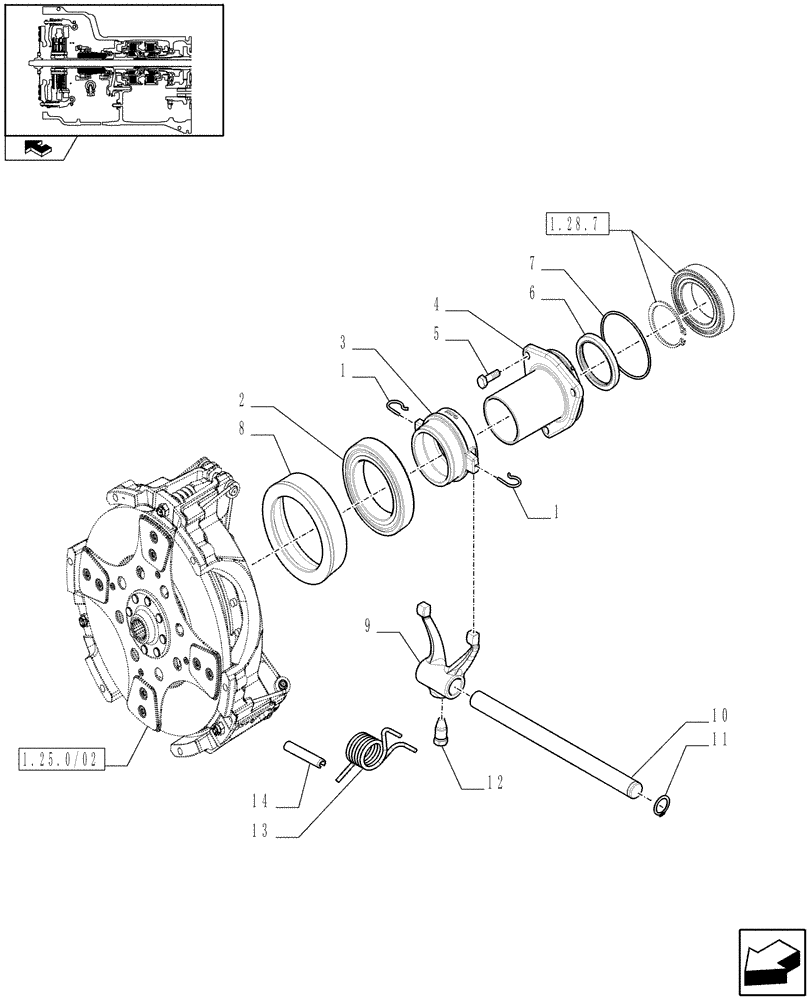

Схема запчастей Case IH FARMALL 90 - (1.26.2/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO CLUTCH CONTROLSAND LEVER LINK (VAR.330120-331120) (03) - TRANSMISSION
9
home
6
1
11
5
14
1.25.0/02
1.28.7
4
3
12
7
13
10
2
8
1

Артикул

Название

Примечание

Количество

1

44011615

SPRING,15mm, Free Length

2шт.

2

47127081

BALL BEARING,75mm ID x 115mm OD x 20mm W

1шт.

3

5191807

BEARING CARRIER,Clutch

1шт.

4

5177143

COVER

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

6

47970741

SEAL

55mm ID x 70mm OD x 7.5mm Thk

1шт.

7

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

8

5167182

SLEEVE,95mm ID x 128mm OD x 33mm L

1шт.

9

5172487

YOKE,M16 x 1.5

1шт.

10

84286497

SHAFT

1шт.

11

11067276

SNAP RING,M24, Ext

1шт.

12

4968813

BOLT,Hex, M16 x 1.5 x 32mm

2шт.

13

5171380

SPRING,Extension, 35mm OD x 53mm L

1шт.

14

14610370

LOCK PIN,M10 x 50, Slotted

1шт.

Выбрано товаров: 14
