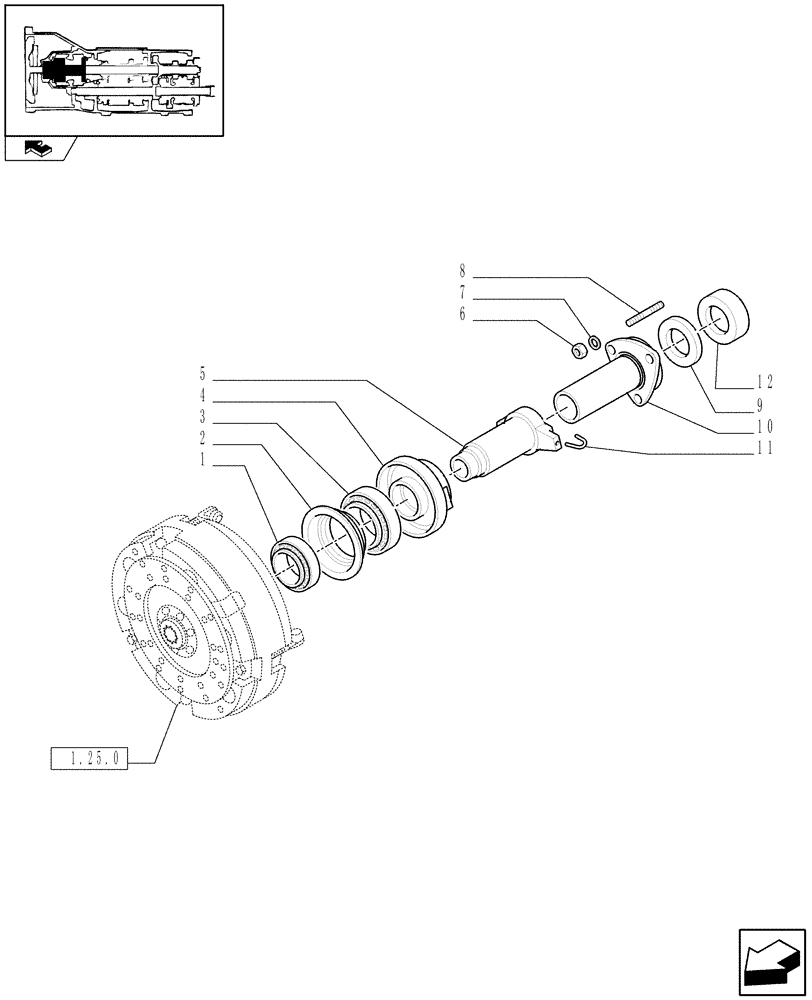

Запчасти Case IH FARMALL 90 (1.26.2) - COVER SUPPORT AND LEVER (03) - TRANSMISSION

1

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

1шт.

2

5089370

COLLAR,64mm ID x 136mm OD x 44.5mm L

1шт.

2

5097678

COLLAR

1шт.

Single Lever PTO, VAR.335250

1шт.

3

24905360

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

4

4993816

SLEEVE

1шт.

5

5089355

BEARING CARRIER,55mm ID x 182mm L

1шт.

6

43362

NUT,M8 x 1.25, Cl 10

3шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.

8

13517111

STUD,M8 x 12mm, Cl 5.8

3шт.

9

5144380

SEAL,45mm ID x 60mm OD x 7mm Thk

45x60x7

1шт.

10

5089356

SUPPORT

1шт.

10

5097574

SUPPORT

1шт.

Transmission 20x12 Combinata (30KM/H), VAR.335113 (743904)

1шт.

Transmission 20x12 Combinata (40KM/H), VAR.335115-336115 (743904)

1шт.

11

44011615

SPRING,15mm, Free Length

2шт.

12

87603199

SEAL

45x60x7

1шт.

12

87660491

SEAL,48.6mm ID x 60mm OD x 7mm Thk

50x60x7

1шт.

Transmission 20x12 Combinata (30KM/H), VAR.335113 (743904)

1шт.

Transmission 20x12 Combinata (40KM/H), VAR.335115-336115 (743904)

1шт.
