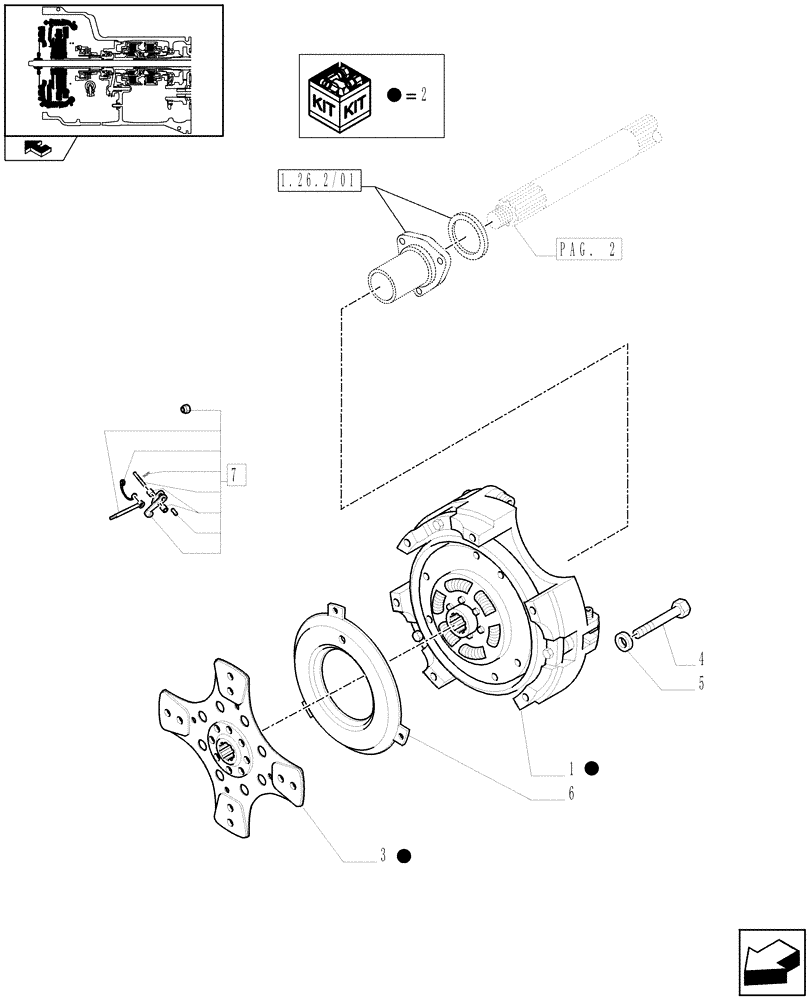

Запчасти Case IH FARMALL 90 (1.25.0/02[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - CLUTCH (VAR.330120-331120) (03) - TRANSMISSION

1

87732490

CLUTCH,327mm OD

Incl. 6,7

1шт.

1

87732490R

REMAN-CLUTCH ASSY

1шт.

1

87732490C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

2

87732485

CLUTCH

1шт.

2

87732490R

REMAN-CLUTCH ASSY

1шт.

2

87732490C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

3

47134874

CLUTCH PLATE,280mm OD

1шт.

3

47134874R

REMAN-CLUTCH PLATE

1шт.

3

47134874C

CORE-CLUTCH PLATE

Return Number

1шт.

4

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

87594144

PRESSURE RING

1шт.

7

87741845

KIT

1шт.
