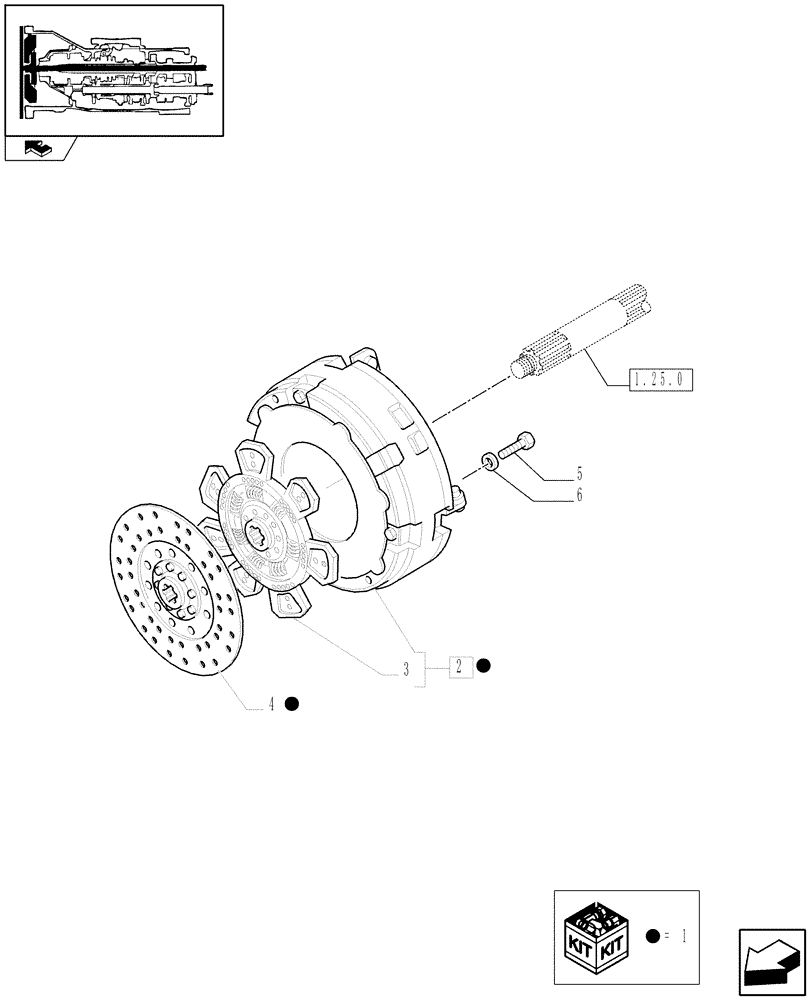

Запчасти Case IH FARMALL 90 (1.25.0/01[01A]) - SINGLE LEVER PTO - CLUTCH - D6911 (VAR.335250) (03) - TRANSMISSION

1

87716690

CLUTCH

ASSY

1шт.

2

87716719

CLUTCH,360mm OD

1шт.

2

87716719R

REMAN-CLUTCH PLATE

1шт.

2

87716719C

CORE-CLUTCH PLATE

Return Number

1шт.

3

87716700

CLUTCH PLATE,310mm OD

1шт.

3

87716700R

REMAN-CLUTCH DISC

1шт.

3

87716700C

CORE-CLUTCH DISC

Return Number

1шт.

4

5167937

CLUTCH PLATE,310mm OD

1шт.

4

5167937R

REMAN-CLUTCH PLATE

1шт.

4

5167937C

CORE-CLUTCH PLATE

Return Number

1шт.

5

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

6шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.
