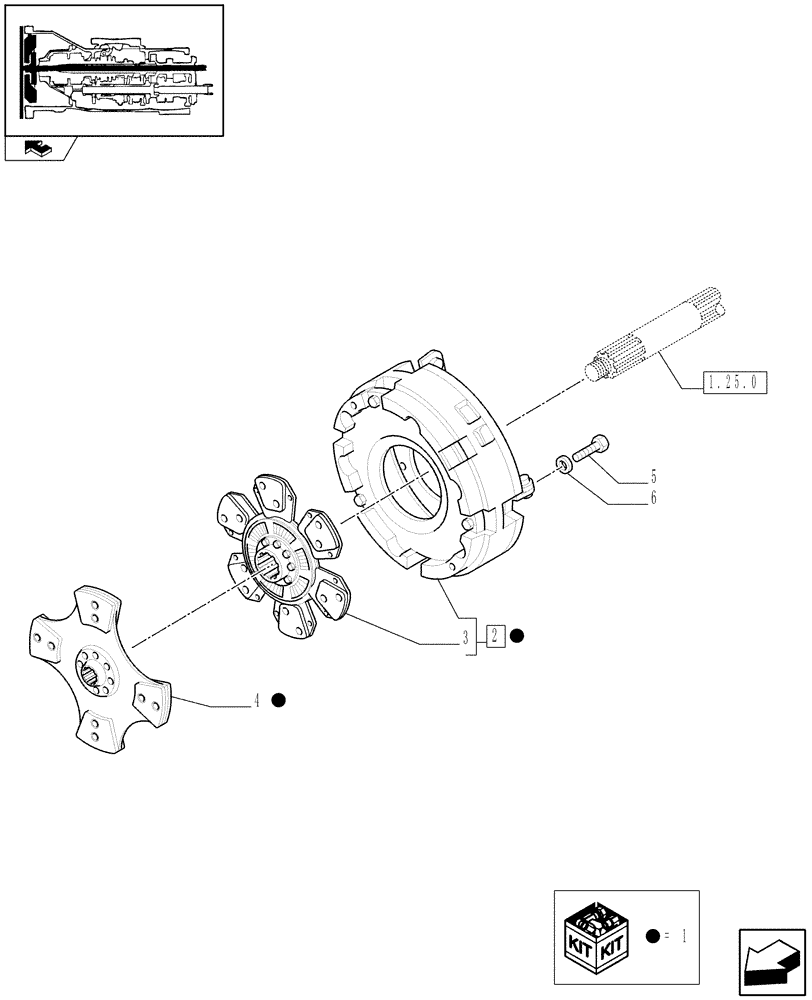

Запчасти Case IH FARMALL 90 (1.25.0/01[01]) - SINGLE LEVER PTO - CLUTCH - C6911 (VAR.335250) (03) - TRANSMISSION

1

5097881

CLUTCH

ASSY

1шт.

2

5189875

CLUTCH,360mm OD

1шт.

2

5189875R

REMAN-CLUTCH PLATE

1шт.

2

5189875C

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

5189825

CLUTCH PLATE

1шт.

3

5189825R

REMAN-CLUTCH PLATE

1шт.

3

5189825C

CORE-CLUTCH PLATE

Return Part Number

1шт.

4

47134874

CLUTCH PLATE,280mm OD

1шт.

4

47134874R

REMAN-CLUTCH PLATE

1шт.

4

47134874C

CORE-CLUTCH PLATE

Return Part Number

1шт.

5

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

6шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.
