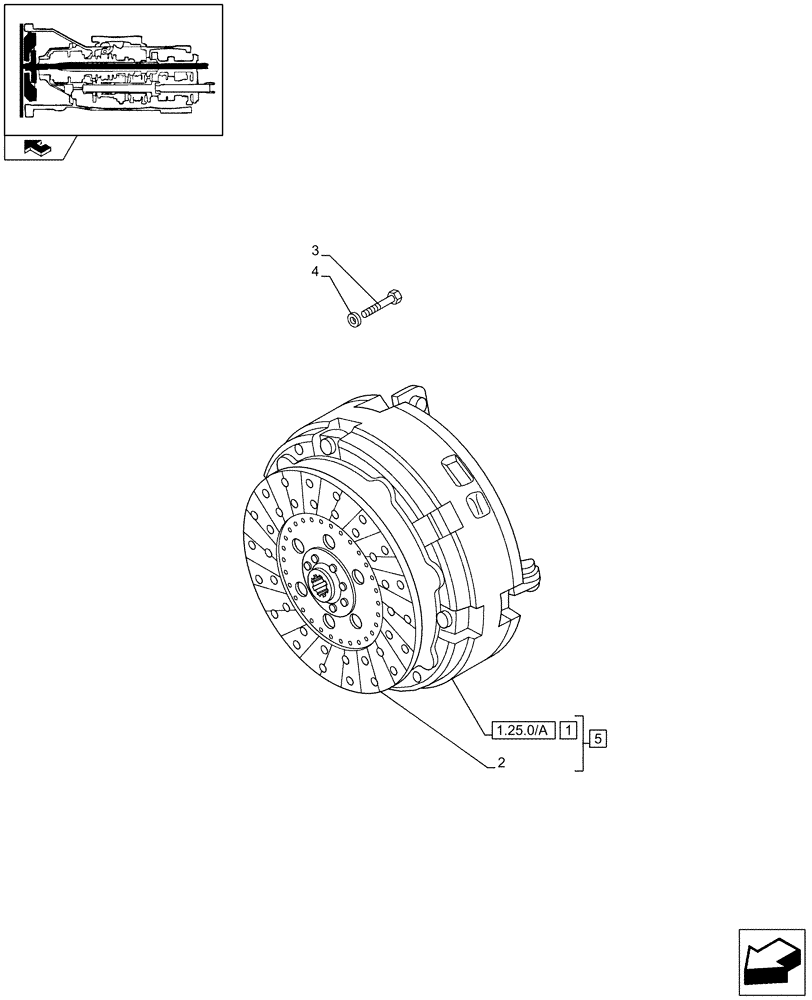

Запчасти Case IH FARMALL 90 (1.25.0[01]) - CLUTCH - C6313 (03) - TRANSMISSION

1

5092803

CLUTCH & DISC ASSY,360mm OD

1шт.

1

5092803R

REMAN-CLUTCH PLATE

Farmall 90, Farmall 95

1шт.

1

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5089337

CLUTCH PLATE,310mm OD

1шт.

2

5089337R

REMAN-CLUTCH PLATE

Reman for New PN 5089337

1шт.

2

5089337C

CORE-CLUTCH PLATE

Return Number

1шт.

3

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

6шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

5

5092802

CLUTCH & DISC ASSY

1шт.

5

5092803R

REMAN-CLUTCH PLATE

Reman for New PN 5092802

1шт.

5

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

5

5089337R

REMAN-CLUTCH PLATE

Reman for New PN 5092802

1шт.

5

5089337C

CORE-CLUTCH PLATE

Return Number

1шт.
