(1.21.1/02) - LOADER READY WITH BRACKET AND REAR MOUNTING PLATES FOR FRONT AUXILIARY EQUIP.- BRACKETS (VAR.335522)

Запчасти Case IH FARMALL 90 (1.21.1/02) - LOADER READY WITH BRACKET AND REAR MOUNTING PLATES FOR FRONT AUXILIARY EQUIP.- BRACKETS (VAR.335522) (03) - TRANSMISSION

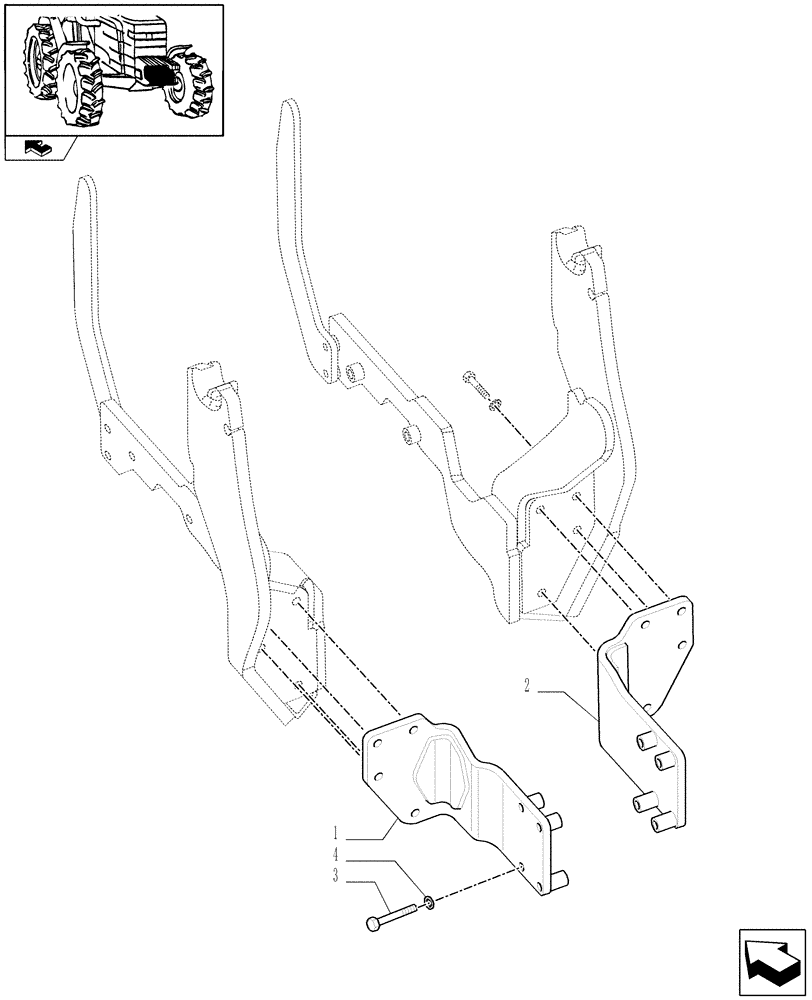

Схема запчастей Case IH FARMALL 90 - (1.21.1/02) - LOADER READY WITH BRACKET AND REAR MOUNTING PLATES FOR FRONT AUXILIARY EQUIP.- BRACKETS (VAR.335522) (03) - TRANSMISSION
2
home
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87722983

SUPPORT

LH

1шт.

2

87314861

BRACKET

RH

1шт.

3

15981624

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

4

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

2шт.

Выбрано товаров: 4
