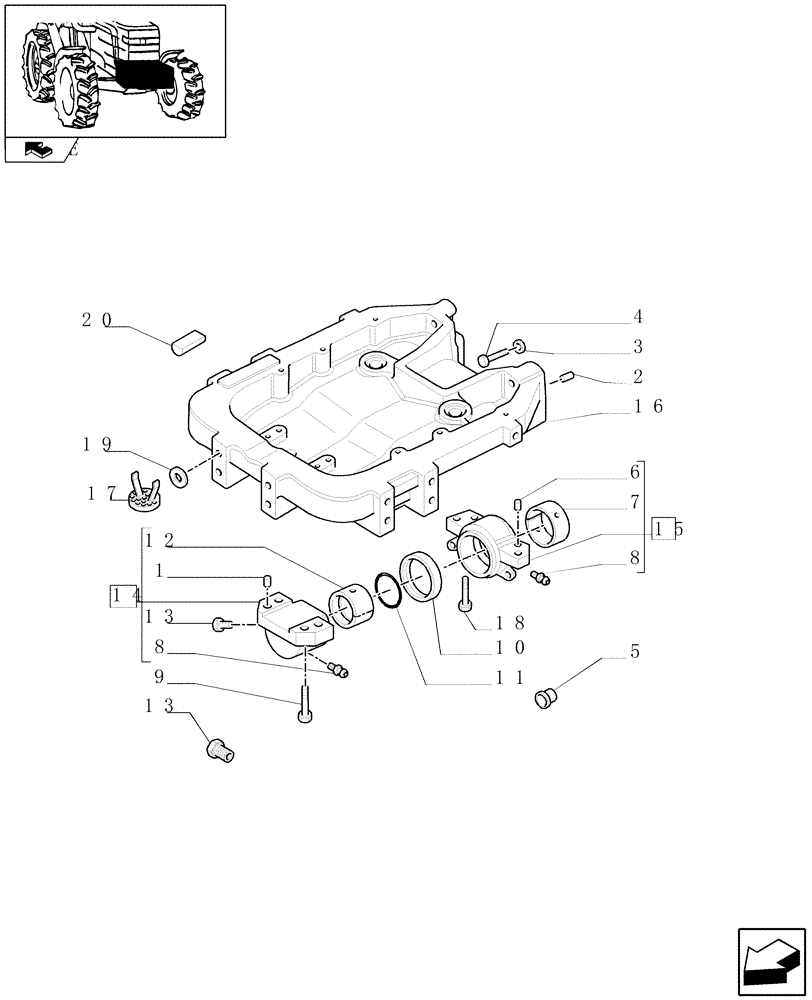

Запчасти Case IH FARMALL 90 (1.21.1) - SUPPORT (03) - TRANSMISSION

1

10837710

DOWEL,M10 x 25

2шт.

2

4668595

DOWEL,18mm OD x 22mm L

2шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20x38x5.2

4шт.

4

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M20x1.5x120

2шт.

4

15989734

BOLT,Hex, M20 x 1.5 x 130mm, Cl 10.9

2шт.

5

590353

PLUG,15mm OD x 10mm High, Plastic

1шт.

6

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

2шт.

9

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18x1.5x65

2шт.

10

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

99x115x7.5

2шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52x57x42

1шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

2шт.

14

5140452

SUPPORT

1шт.

15

5140454

SUPPORT

1шт.

16

87677750

AXLE SUPPORT

4WD

1шт.

16

87677745

AXLE SUPPORT

2WD

1шт.

17

5120218

GRILLE

1шт.

18

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

19

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

Black

1шт.

19

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

1шт.

19

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

19

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

19

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

20

84205922

PLUG

1шт.
