(1.21.0/04[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - REAR TRANSMISSION BOX (VAR.330120-331120)

Запчасти Case IH FARMALL 90 (1.21.0/04[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - REAR TRANSMISSION BOX (VAR.330120-331120) (03) - TRANSMISSION

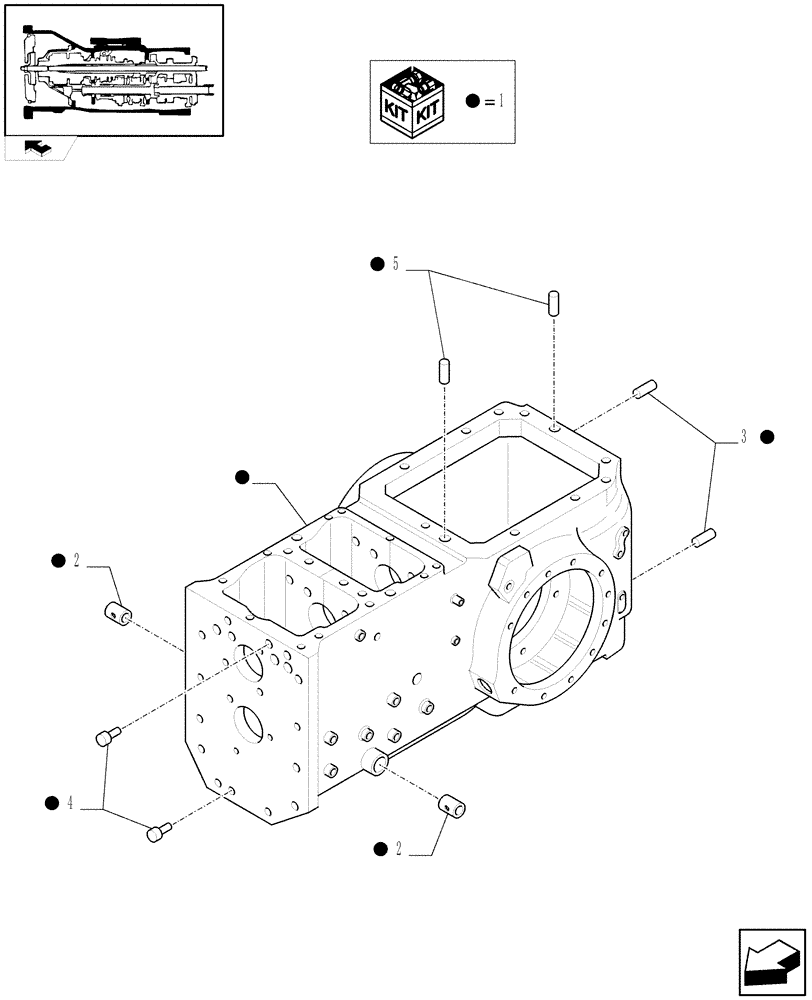

Схема запчастей Case IH FARMALL 90 - (1.21.0/04[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF.LOCK - REAR TRANSMISSION BOX (VAR.330120-331120) (03) - TRANSMISSION
1
1
1
3
1
2
home
1
1
5
1
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84365339

TRANSMISSION HOUSING

, Serial Range: -C6899

1шт.

1

84424274

TRANSMISSION HOUSING

, Start Serial: D6899

1шт.

2

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

1шт.

3

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

2шт.

4

5163325

DOWEL

2шт.

5

5119529

DOWEL,15mm OD x 22mm L

2шт.

Выбрано товаров: 0
