(1.21.0/01[01]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY (VAR.335113-335115-336115-743904)

Запчасти Case IH FARMALL 90 (1.21.0/01[01]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY (VAR.335113-335115-336115-743904) (03) - TRANSMISSION

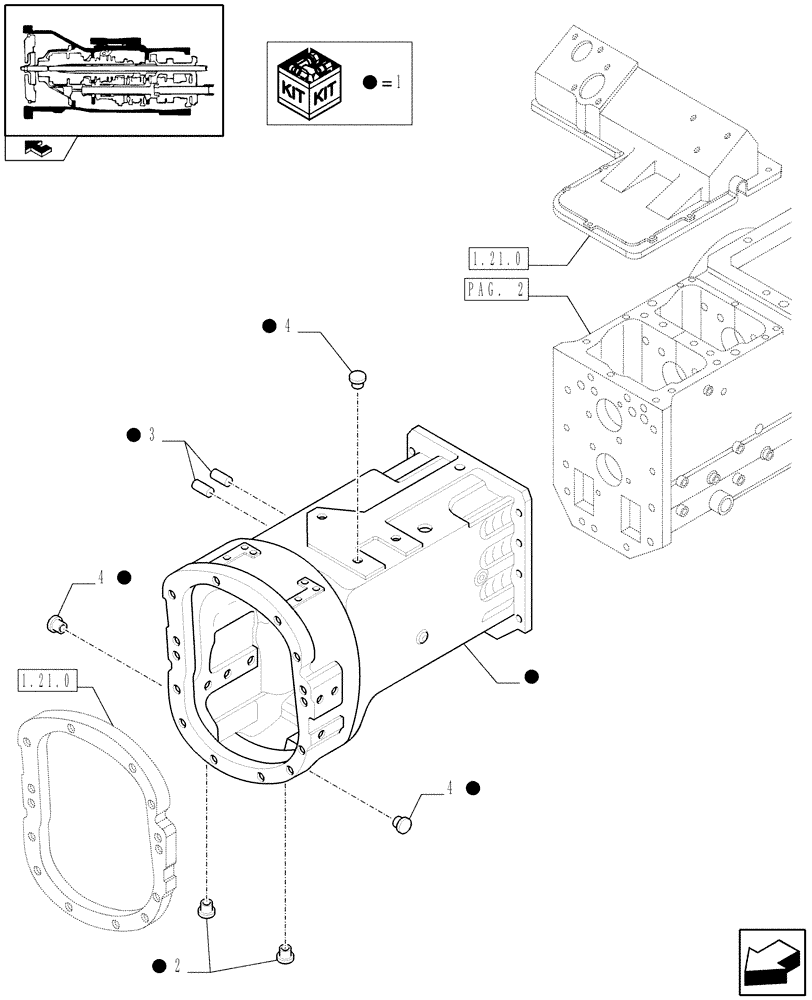

Схема запчастей Case IH FARMALL 90 - (1.21.0/01[01]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY (VAR.335113-335115-336115-743904) (03) - TRANSMISSION
1.21.0
4
2
4
1
1
3
1
home
pag. 2
1.21.0
1
1
1
4
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5097577

HOUSING

90 Model

1шт.

1

5097569

HOUSING

95 Model

1шт.

2

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

D=10.8-11

2шт.

3

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

2шт.

4

590353

PLUG,15mm OD x 10mm High, Plastic

D=14.8-15

2шт.

Выбрано товаров: 5
