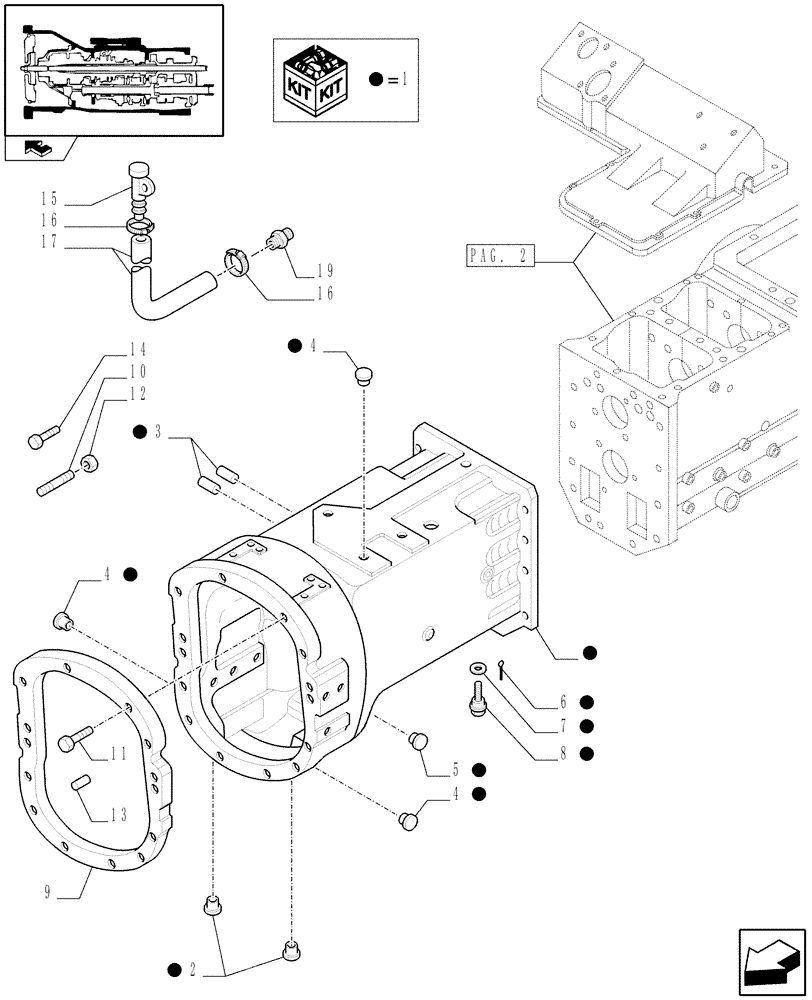

Запчасти Case IH FARMALL 90 (1.21.0[01]) - TRACTOR BODY - SPACER, PIPE AND COLLAR (03) - TRANSMISSION

1

5091777

HOUSING

90 Model

1шт.

1

5090542

HOUSING

95 Model

1шт.

2

5091776

HOUSING

90 Model

1шт.

2

5089253

HOUSING

95 Model

1шт.

3

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

2шт.

4

590353

PLUG,15mm OD x 10mm High, Plastic

D=14.8-15

10шт.

5

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

D=10.8-11

2шт.

6

10798201

COTTER PIN,M6.3 x 32

1шт.

7

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

3шт.

8

5118991

PLUG,M22 x 1.5

1шт.

9

5166241

SPACER

95 Model

1шт.

10

13972324

STUD

M12x1.25x125

2шт.

11

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12x1.25x105

10шт.

12

16101524

NUT,M12 x 1.25, Cl 10

2шт.

13

4658441

DOWEL,10mm OD x 20mm L

95 Model

2шт.

14

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

10шт.

15

5153270

BREATHER

1шт.

16

10186890

HOSE CLAMP,M14-16, Worm

2шт.

17

84236795

HOSE

1000MM

1шт.

18

13305311

SCREW,Pozidriv Flat Hd, Csk, M10 x 20mm, Cl 5.8

1шт.

19

5157395

FITTING

1шт.
