Запчасти Case IH FARMALL 90 (1.17.0) - RADIATOR - CAP AND BRACKET (02) - ENGINE EQUIPMENT

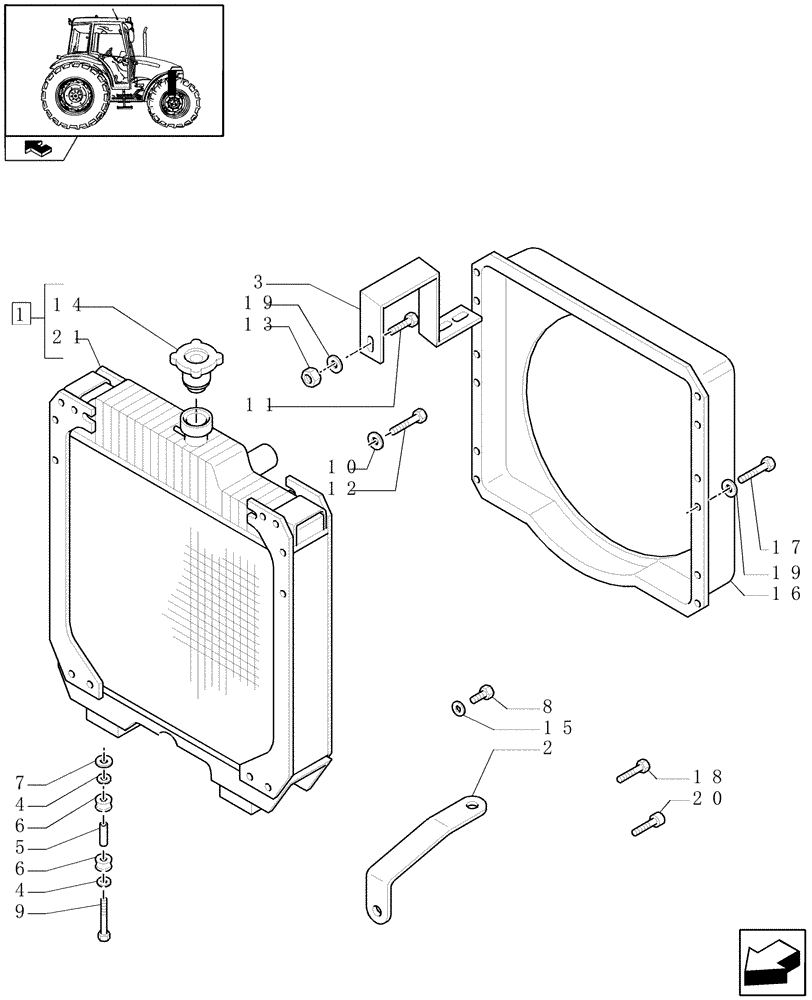

Схема запчастей Case IH FARMALL 90 - (1.17.0) - RADIATOR - CAP AND BRACKET (02) - ENGINE EQUIPMENT
5
7
2
19
15
home
11
1
8
9
3
6
16
20
13
4
6
19
12
4
10
21
18
17
14

Артикул

Название

Примечание

Количество

1

87681422

RADIATOR

, Serial Range: -C6296

1шт.

1

84175586

RADIATOR

, Start Serial: D6296

1шт.

2

87677773

SUPPORT

1шт.

3

87599285

SUPPORT

1шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

8

13274214

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

2шт.

9

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

10

10516674

LOCK WASHER,M8

3шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

12

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

2шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

14

83935905

RADIATOR CAP

, Serial Range: -C6296

1шт.

14

84250072

RADIATOR CAP

, Start Serial: D6296

1шт.

15

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

16

5090561

GUARD

1шт.

17

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

18

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

20

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

21

84250074

RADIATOR

1шт.

Выбрано товаров: 23
