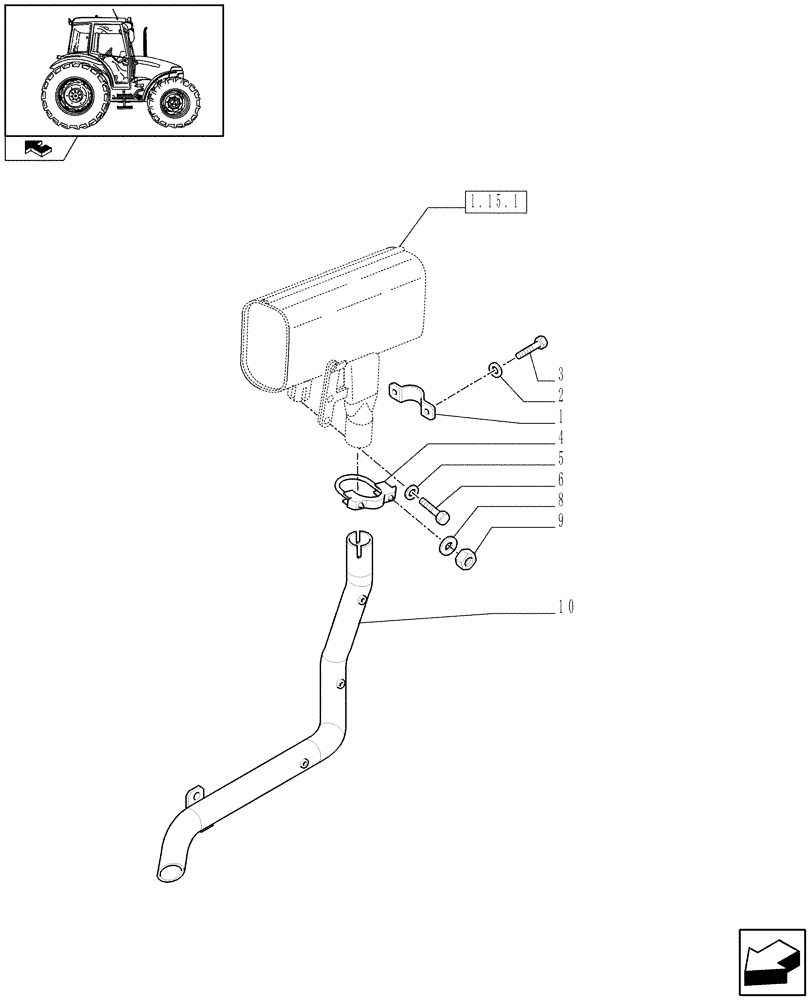

Запчасти Case IH FARMALL 90 (1.15.1/02) - HORIZONTAL EXHAUST FOR UNDERHOOD MUFFLER (VAR.335150) (02) - ENGINE EQUIPMENT

1

5183964

HOSE CLIP

1шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

3

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

4

5097158

COLLAR,60mm ID

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

7

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

8

10571874

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

9

12164714

NUT,M10 x 1.25, Cl 8

2шт.

10

87678558

EXHAUST SYSTEM PIPE

, Serial Range: -C5884

1шт.

10

87743790

EXHAUST SYSTEM PIPE

, Serial Range: D5884-D5931

1шт.

11

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

10

84128170

EXHAUST SYSTEM PIPE

, Start Serial: D5931

1шт.
