(0.08.3/01) - FLYWHEEL WITH POWER SHUTTLE

Запчасти Case IH FARMALL 85U (0.08.3/01) - FLYWHEEL WITH POWER SHUTTLE (01) - ENGINE

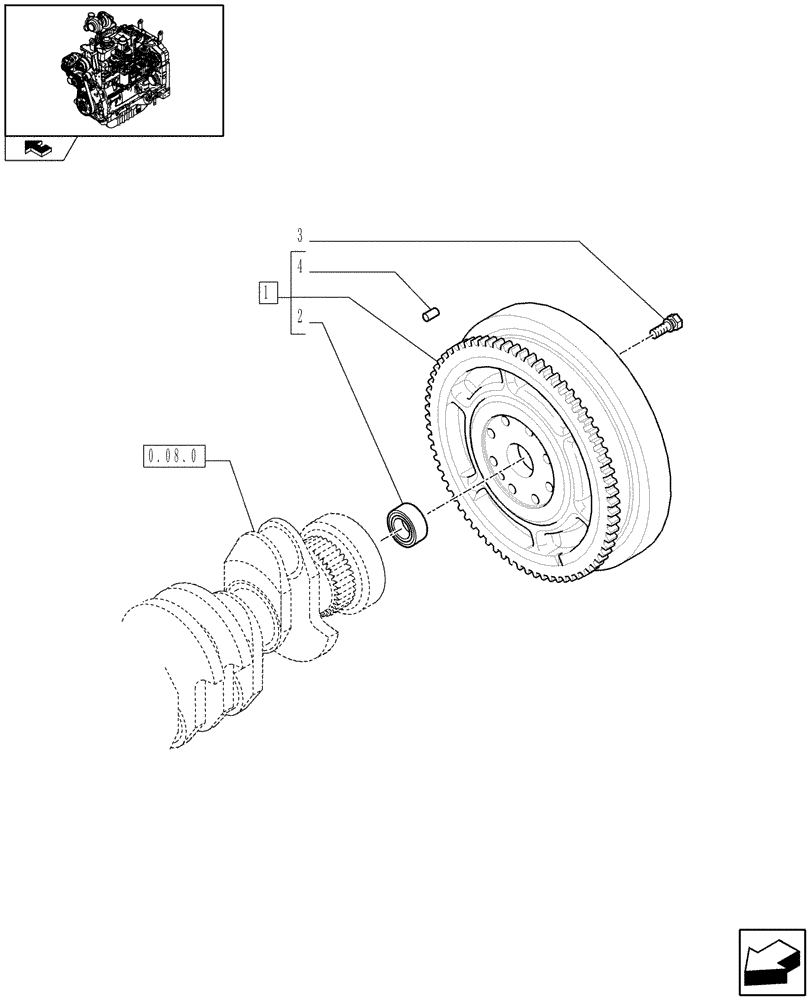

Схема запчастей Case IH FARMALL 85U - (0.08.3/01) - FLYWHEEL WITH POWER SHUTTLE (01) - ENGINE
4
0.08.0
2
1
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87544081

ENGINE FLYWHEEL

ASSY, Serial Range: -ZBJL11023

1шт.

1

84293368

ENGINE FLYWHEEL

ASSY, Serial Range: ZBJL11024-C6955

1шт.

1

84519262

ENGINE FLYWHEEL,355mm OD, W/ Ring Gear

ASSY, Start Serial: D6955

1шт.

2

47133429

BUSHING

1шт.

3

47133720

BOLT,Hex, M12 x 1.25 x 31.5

8шт.

4

10839710

DOWEL,M10 x 15.00mm

1шт.
