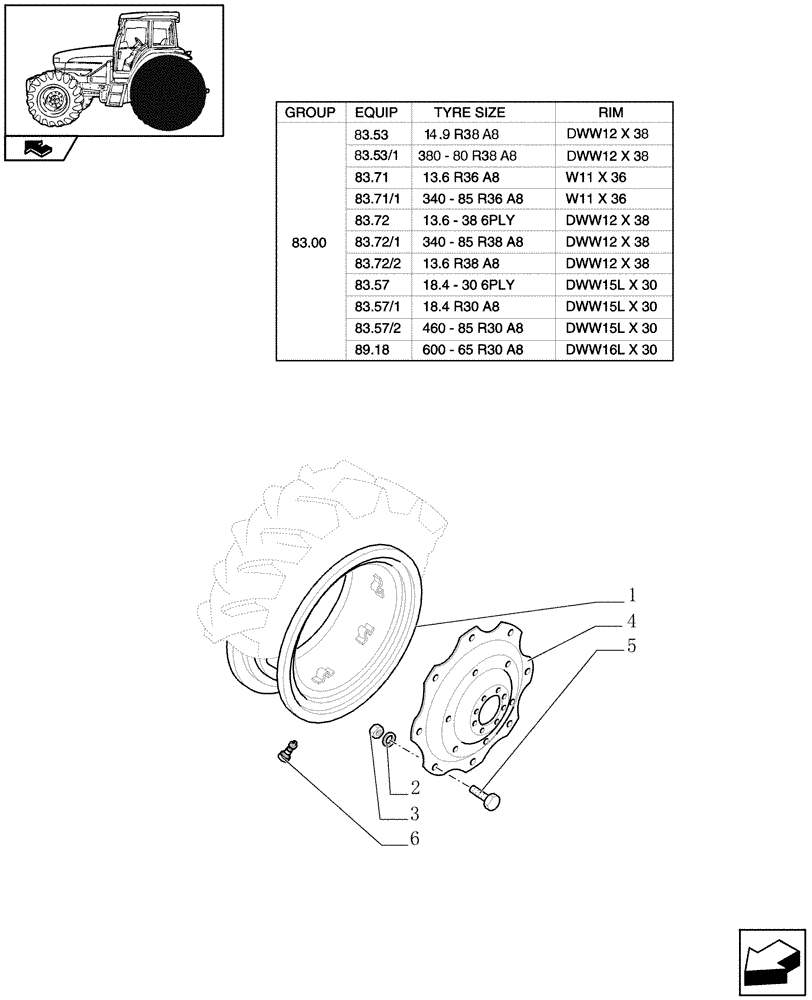

Запчасти Case IH FARMALL 85U (83.00[02]) - REAR WHEELS (11) - WHEELS/TRACKS

1

47128182

RIM

W11 x 36

2шт.

JXU 75, JXU 85 / 85U, JXU 95 / 95U

1шт.

1

47128195

RIM,DWW15Lx30, 8 Bolts, CASE Silver

DWW15L x 30

2шт.

1

47128192

RIM,DWW12 x 38, 8 Bolts, CASE Silver

DWW12 x 38

2шт.

1

87630343

RIM

DWW16L x 30

2шт.

JXU 75, JXU 85 / 85U

1шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

47128174

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

D=616, Silver

2шт.

4

47129794

WHEEL DISC

2шт.

JXU 75, JXU 85 / 85U, JXU 95 / 95U

1шт.

4

47128171

WHEEL DISC,818.4mm Dia, 8 Bolts , Case IH Silver

D=818, Silver

2шт.

4

47128174

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

D=616, Silver

2шт.

JXU 75, JXU 85 / 85U

1шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

5

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

16шт.

JXU 75, JXU 85 / 85U

1шт.

6

87323751

PNEUMATIC VALVE

2шт.
