(82.00[02]) - FRONT WHEELS - 4WD

Запчасти Case IH FARMALL 85U (82.00[02]) - FRONT WHEELS - 4WD (11) - WHEELS/TRACKS

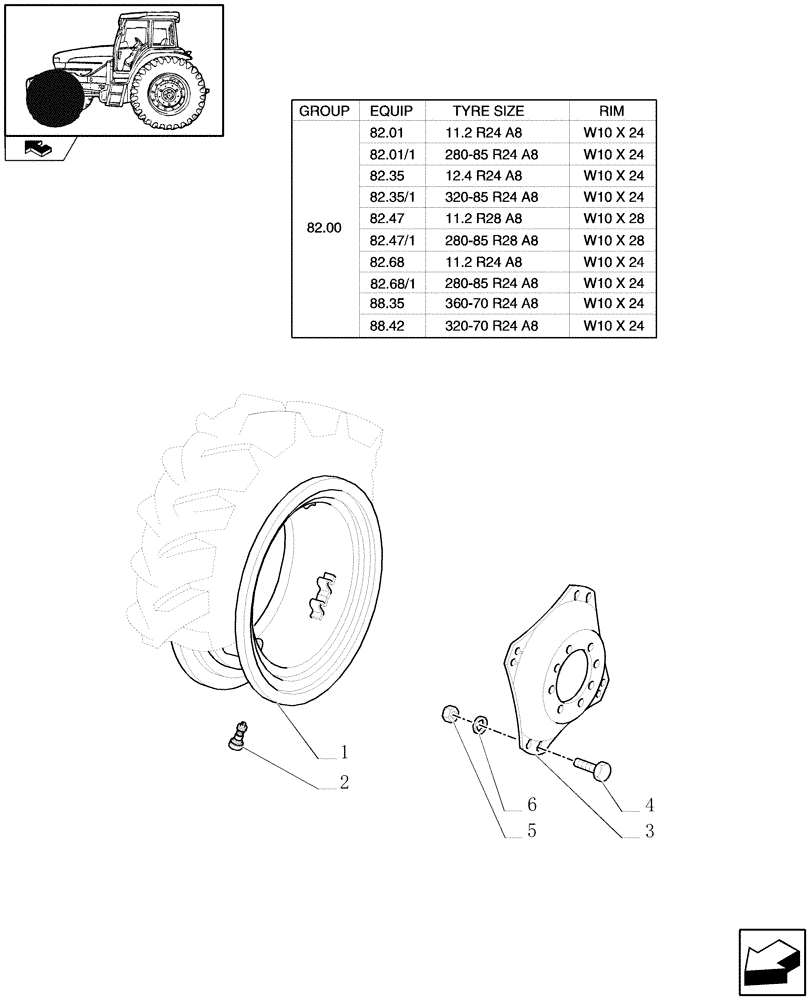

Схема запчастей Case IH FARMALL 85U - (82.00[02]) - FRONT WHEELS - 4WD (11) - WHEELS/TRACKS
5
6
4
home
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47128183

RIM,W10 x 24, 8 Bolts, CASE Silver

W10 x 24

2шт.

1

47128185

RIM,W10 x 28, 8 Bolts, CASE Silver

W10 x 28

2шт.

2

87323751

PNEUMATIC VALVE

2шт.

3

87357860

WHEEL DISC,515mm Dia, 8 Bolts , Case IH Silver

D=515, Silver

2шт.

3

47128169

WHEEL DISC,616mm Dia, 8 Bolts , Case IH Silver

2шт.

4

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

5

10790524

NUT,M16 x 1.5

16шт.

6

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.
