(1.96.2/08B) - TWO MID-MOUNT VALVES FOR REAR CONTROL VALVES - JOYSTICK - BREAKDOWN - ROPS - D7237 - C7429

Запчасти Case IH FARMALL 85U (1.96.2/08B) - TWO MID-MOUNT VALVES FOR REAR CONTROL VALVES - JOYSTICK - BREAKDOWN - ROPS - D7237 - C7429 (10) - OPERATORS PLATFORM/CAB

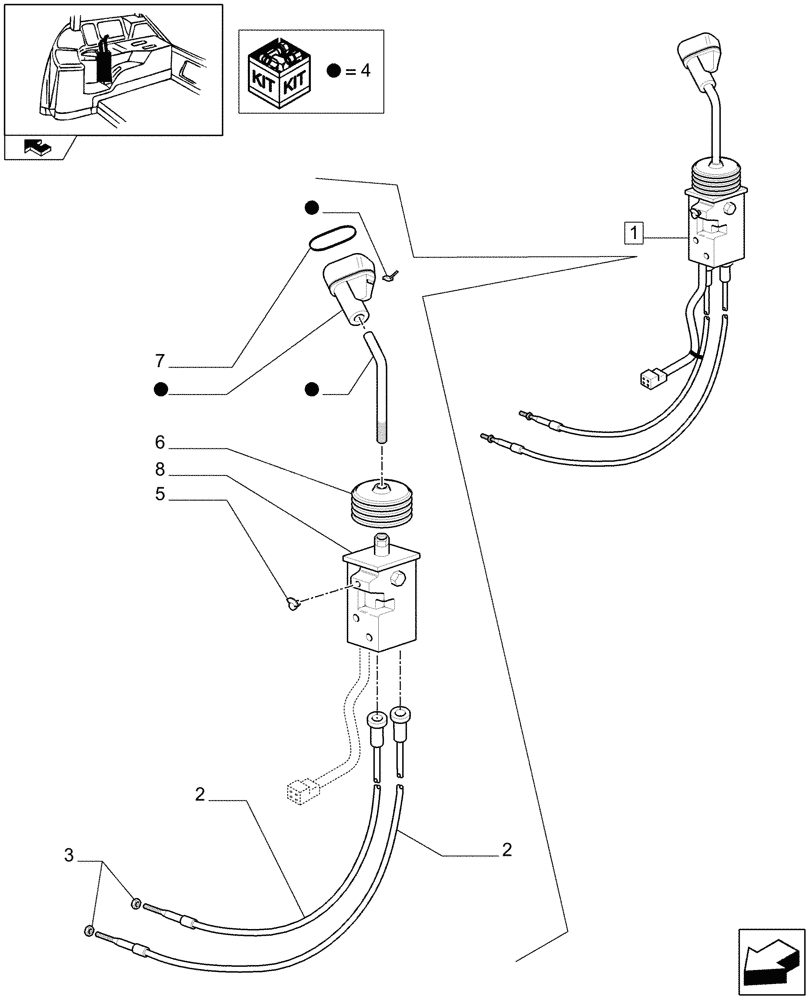

Схема запчастей Case IH FARMALL 85U - (1.96.2/08B) - TWO MID-MOUNT VALVES FOR REAR CONTROL VALVES - JOYSTICK - BREAKDOWN - ROPS - D7237 - C7429 (10) - OPERATORS PLATFORM/CAB
7
2
5
3
4
8
home
6
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84402281

JOYSTICK

ASSY, Contains 2, 3, 5 - 8

1шт.

2

84590201

BOWDEN CONTROL

L = 950 mm

2шт.

3

336266

NUT,M6, Cl 8

2шт.

4

84169691

HANDLE GRIP

1шт.

5

82037473

INSULATING PANEL

1шт.

6

82036441

BELLOWS

1шт.

7

82039401

SEAL

1шт.

8

84169695

REPAIR KIT

1шт.

Выбрано товаров: 8
