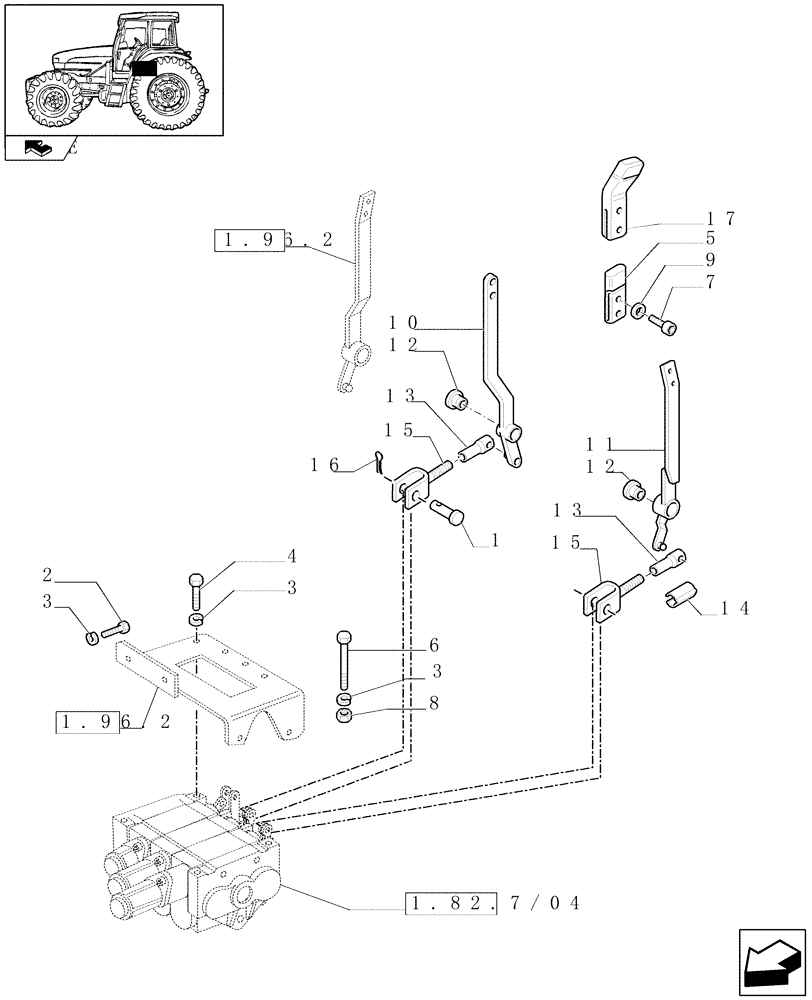

Запчасти Case IH FARMALL 85U (1.96.2/04[01]) - 1 S/D, 1W/FLOAT, 1 W/ FLOAT & AUTOM. CUTOUT DISTRIBUTORS - CONTROL LEVERS - W/CAB (VAR.330369) (10) - OPERATORS PLATFORM/CAB

1

5126824

PIN,6.4mm OD x 21.5mm L

4шт.

2

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

3

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

4

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

5

5126312

KNOB

Black, Serial Range: -C6013

2шт.

6

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

3шт.

7

14302928

BOLT,M4 x 0.7 x 10mm, Cl 8.8

4шт.

8

12164714

NUT,M10 x 1.25, Cl 8

3шт.

9

10569074

LOCK WASHER

4шт.

10

47128651

LEVER

1шт.

11

47128663

LEVER

1шт.

12

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

13

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

4шт.

14

10125574

CLAMP,13mm

D=13

4шт.

15

87303363

CLEVIS

2шт.

16

10734304

COTTER PIN,M2 x 18

4шт.

17

5126318

KNOB,Black

Black, Start Serial: D6013

2шт.
