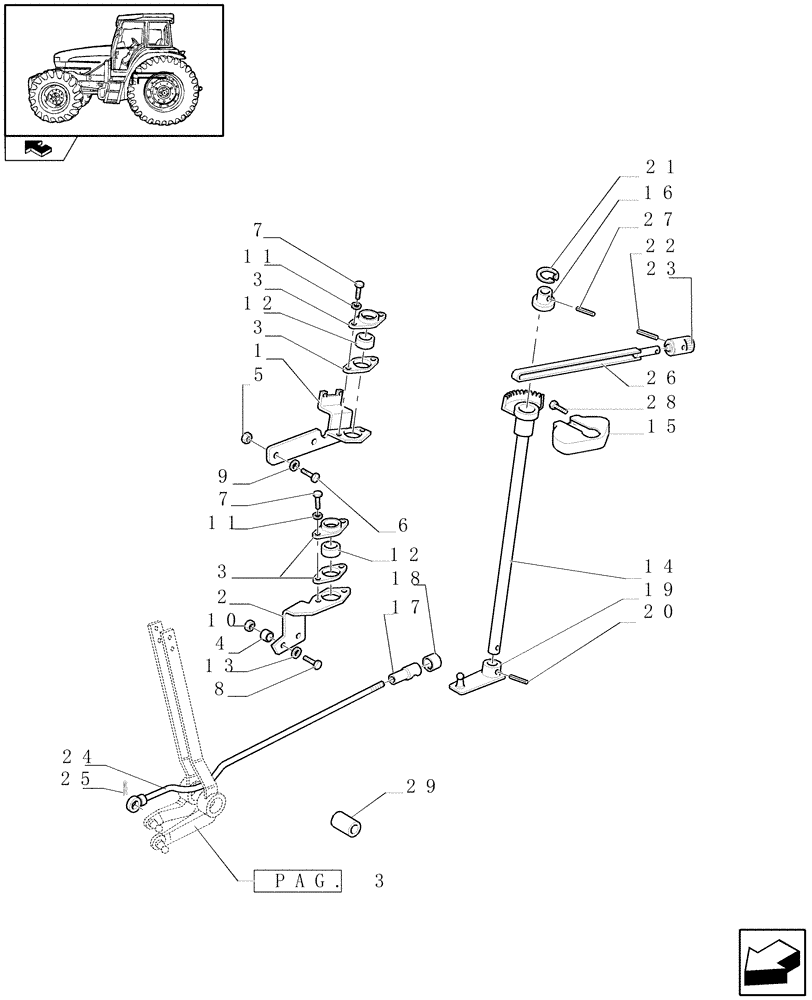

Запчасти Case IH FARMALL 85U (1.96.1[05]) - LIFT EXTERNAL CONTROLS - LEVERS & SUPPORT - L/CAB (10) - OPERATORS PLATFORM/CAB

1

47124789

SUPPORT

1шт.

2

5195733

SUPPORT

1шт.

3

5110722

CUP

4шт.

4

5169262

SPACER,8.5mm ID x 20mm OD x 20mm L

8.5 x 20 x 20

2шт.

5

12164714

NUT,M10 x 1.25, Cl 8

2шт.

6

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

8

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

9

12641004

WASHER,10.2mm ID x 20mm OD x 3mm Thk

2шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

11

10516474

LOCK WASHER

M6

4шт.

12

5127536

BUSHING,20.5mm ID x 32mm OD

2шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

5170979

CONTROL SHAFT

1шт.

15

5171028

COVER

1шт.

16

5171002

HUB

1шт.

17

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

M8 x 13

1шт.

18

10125574

CLAMP,13mm

1шт.

19

5134373

LEVER

1шт.

20

13910170

ROLL PIN,M6 x 26, Coiled

1шт.

21

11059974

SNAP RING,M40, Int

1шт.

22

14164470

LOCK PIN,M4 x 32, Slotted

1шт.

23

5144119

KNOB

1шт.

24

5169260

TIE-ROD

1шт.

25

10796401

COTTER PIN,M3.2 x 18

1шт.

26

5189838

LEVER

1шт.

27

14601374

LOCK PIN,M5 x 30, Slotted

1шт.

28

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

29

13605711

SPACER

L=5, VAR.330300-331300

1шт.
