Запчасти Case IH FARMALL 85U (1.96.0) - REVERSER CONTROL LEVER (10) - OPERATORS PLATFORM/CAB

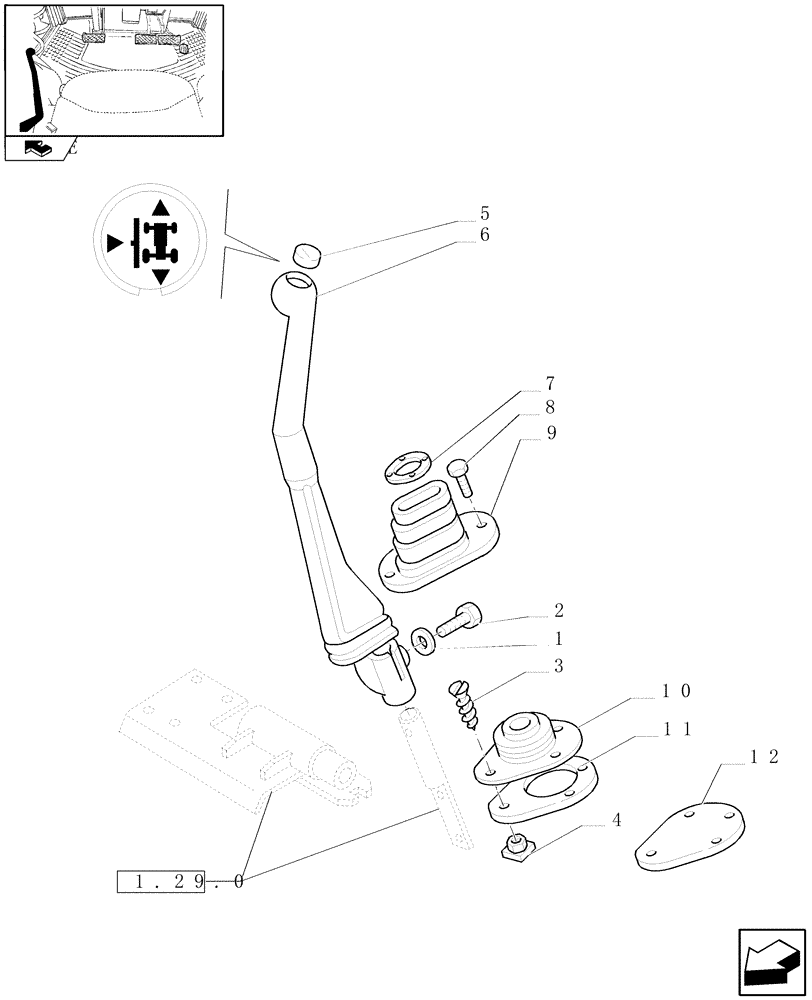

Схема запчастей Case IH FARMALL 85U - (1.96.0) - REVERSER CONTROL LEVER (10) - OPERATORS PLATFORM/CAB
1
10
4
1.29.0
5
8
11
2
7
9
12
6
home
3

Артикул

Название

Примечание

Количество

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

2

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

3

15688507

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 22mm

4шт.

4

14115780

BLOCK

4шт.

4

14115980

NUT

Less Lever

4шт.

VAR.330114-331114-332114-330279-331279-332279, Power Shuttle Trasmission for JXU75, JXU85 / 85U, JXU95 / 95U, JXU105 / 105U and with Std Equipment for JXU115

1шт.

5

5173907

INSERT

1шт.

6

5129984

LEVER

1шт.

7

5176214

RING

1шт.

8

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

9

5167408

BOOT

1шт.

10

5130289

BOOT

1шт.

11

5153389

SHIM,80mm ID x 120mm OD x 3.5mm Thk

1шт.

12

5176213

COVER

Less Lever

1шт.

VAR.330114-331114-332114-330279-331279-332279, Power Shuttle Trasmission for JXU75, JXU85 / 85U, JXU95 / 95U, JXU105 / 105U and with Std Equipment for JXU115

1шт.

Выбрано товаров: 15
