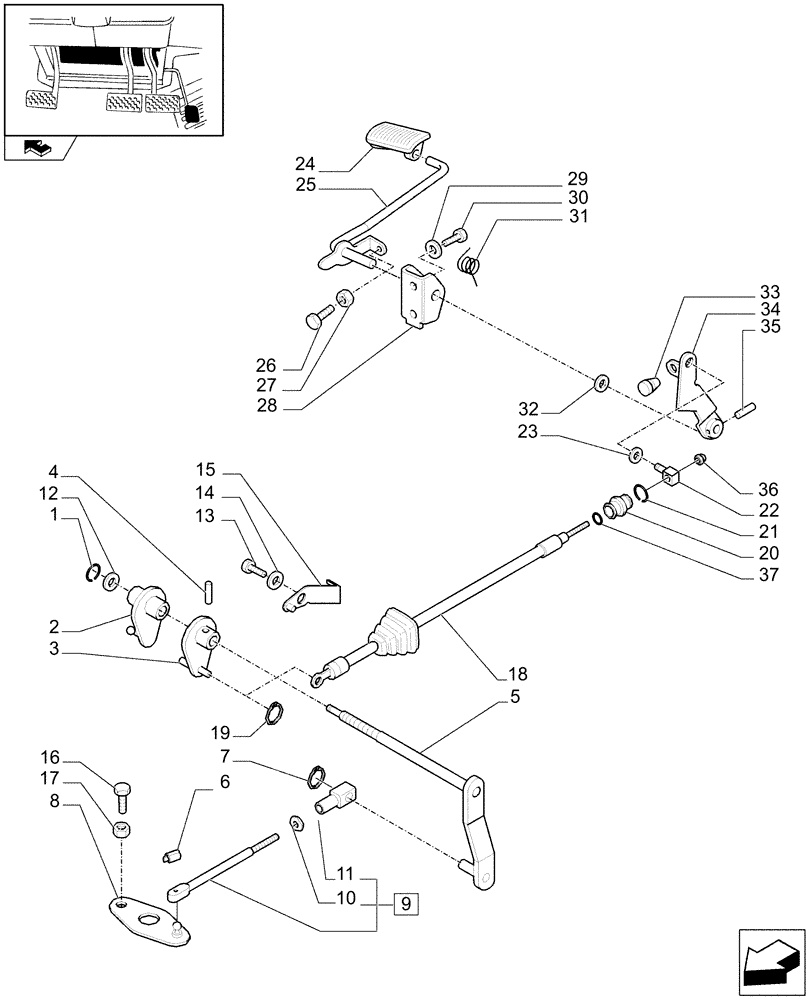

Запчасти Case IH FARMALL 85U (1.95.3) - ACCELERATOR CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB

1

11066076

SNAP RING,M12, Ext

1шт.

2

47134380

LEVER

1шт.

3

47134324

LEVER

1шт.

4

13904670

ROLL PIN,M4 x 20, Coiled

1шт.

5

47134321

SHAFT

1шт.

6

47134319

CLIP,7.8mm ID x 12.7mm L

1шт.

7

10124774

CLIP,Lock, 8mm OD x 15mm L

1шт.

8

47134315

PLATE

1шт.

9

47134320

TIE-ROD

1шт.

10

10725011

THIN NUT,Thin, M5 x .8, Cl 04

1шт.

11

10124311

BALL JOINT HEAD

1шт.

12

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

13

16050721

BOLT,Hex, M14 x 2 x 20mm, Cl 8.8, Full Thd

1шт.

14

11191074

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 2.6mm Thk

1шт.

15

47134332

BRACKET

1шт.

16

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

17

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

18

47134192

CABLE

1шт.

19

11063876

SPRING CLIP,M5 x 4mm

1шт.

20

47134333

BUSHING

1шт.

21

11087374

CIRCLIP,M13

1шт.

22

47134336

PIN

1шт.

23

11087776

CIRCLIP,Ext., M6, BLO

1шт.

24

5167651

PEDAL

, Serial Range: -C6555

1шт.

24

84250071

PEDAL

, Start Serial: D6555

1шт.

25

5173335

PEDAL STEM

1шт.

26

15212721

BOLT,Hex, M6 x 40mm, Cl 8.8, Full Thd

1шт.

27

15896214

NUT,M6, Cl 8

1шт.

28

5157531

SUPPORT

1шт.

29

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

30

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

31

5148906

SPRING

1шт.

32

5183850

SPACER,12mm ID x 24mm OD x 6mm L

1шт.

33

14567080

FASTENER,Stud, Ribbed, 5.50mm x 4mm x 1mm, Plastic

1шт.

34

47134334

LEVER

1шт.

35

5186261

ROLL PIN,4mm OD x 24mm L, Coiled

4 x 24

1шт.

36

12574215

NUT,M6 x 1, Cl 8

1шт.

37

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.
