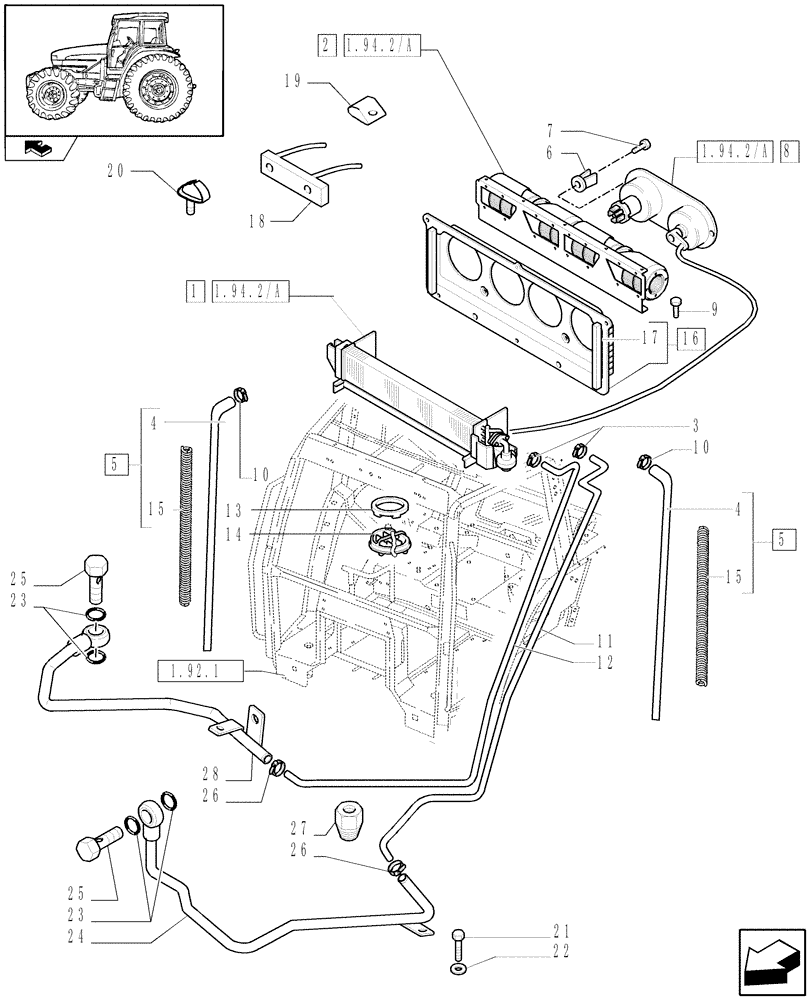

Запчасти Case IH FARMALL 85U (1.94.2[01]) - HEATING, PARTS - W/CAB - C6273 (10) - OPERATORS PLATFORM/CAB

1

5192874

HEATER

1шт.

2

82002761

BLOWER

1шт.

82002761R

REMAN-BLOWER

FARMALL 85U, FARMALL 95U, FARMALL 105U All (1/08-)

1шт.

82002761C

CORE-BLOWER

Return Number

1шт.

3

13423777

HOSE CLAMP,20.6mm - 22.9mm

20.6 - 22.9

4шт.

4

19053382

HOSE,10.00 mm

10 x 15

1шт.

5

5186523

TUBE,1920.00 mm

2шт.

6

14115780

BLOCK

2шт.

7

15691607

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 22mm

2шт.

8

5178633

CONTROL PANEL

1шт.

9

10445821

SCREW,Hex, M4 x 8mm, Cl 8.8, Full Thd

4шт.

10

13423577

HOSE CLAMP,16.5mm - 18.3mm

16.5 - 18.3

2шт.

10

13423470

HOSE CLAMP,14.8mm - 16.4mm

14.8 x 16.4

4шт.

11

87718769

HEATER HOSE,14.00 mm ID, 2850.00 mm

FEED

1шт.

12

87718770

HEATER HOSE,14.00 mm ID, 2840.00 mm

1шт.

13

5108700

SEALING RING,98.5mm ID

6шт.

14

9958999

DIFFUSER

D=97.5

6шт.

15

5186521

SPRING

2шт.

16

87315905

COVER

1шт.

17

47124181

SEAL

2шт.

18

47134551

BRACKET

1шт.

19

47134634

BRACKET

8шт.

20

14575780

SPRING

4шт.

21

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

22

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

23

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

24

87310978

RIGID TUBE

Recovery

1шт.

25

5100984

BANJO BOLT,M18 x 1.5, 34mm L

2шт.

26

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

2шт.

27

87311071

ADAPTER

1/2"-14NPTF, M18x1.5

1шт.

28

87310977

RIGID TUBE

Delivery

1шт.
