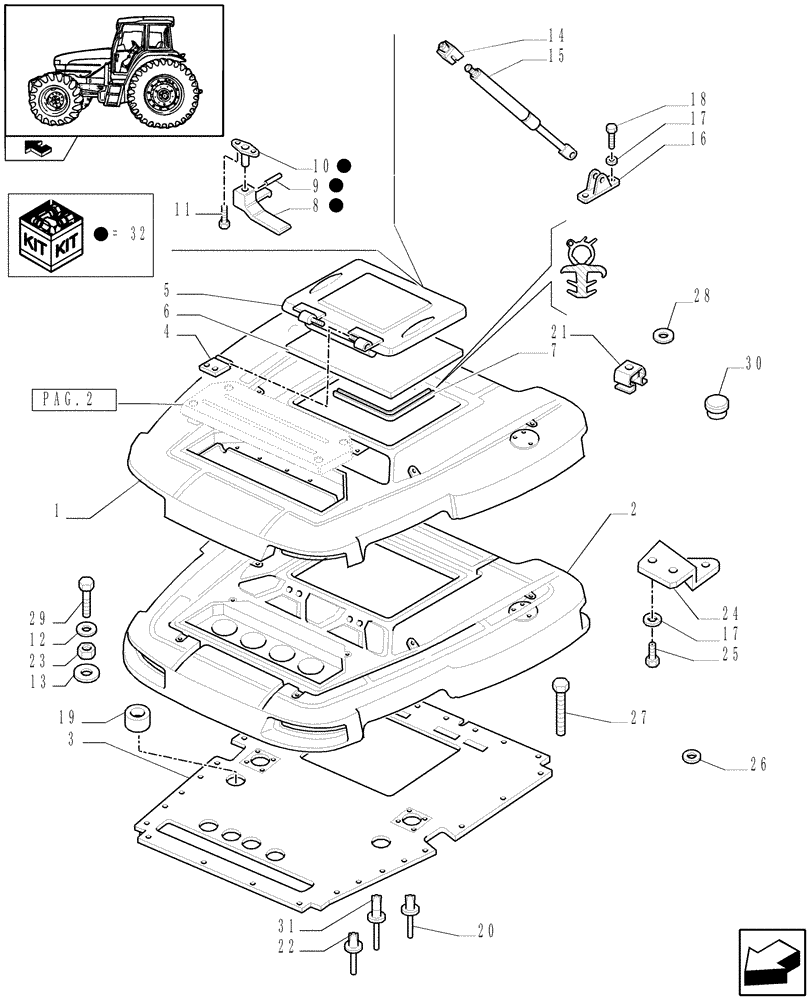

Запчасти Case IH FARMALL 85U (1.94.0[01]) - CAB WITH ESCAPE HATCH - CAB, ROOF, OPENING AND INTERNAL TRIMMING - W/CAB - C6500 (10) - OPERATORS PLATFORM/CAB

1

87318168

COVER

Red

1шт.

2

87323817

ROOF

1шт.

3

47135778

SOFT TRIM

1шт.

4

47136894

SUPPORT

2шт.

5

47137141

HATCH

Red

1шт.

6

47131598

SOFT TRIM

1шт.

7

87351302

GASKET

1шт.

8

87656446

HANDLE

1шт.

9

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

10

5178206

PIN,10mm OD x 51mm L

1шт.

11

13299414

SCREW,Pozidriv Flat Hd, Csk, M5 x 16mm, Cl 5.8

2шт.

12

10553778

WASHER

12шт.

13

87325114

RUBBER WASHER

12шт.

14

82014163

PANEL

2шт.

15

47136073

GAS STRUT

2шт.

16

47136054

BRACKET

2шт.

17

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

14шт.

18

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

19

47131771

INSULATOR

2шт.

20

47132418

FASTENER

6шт.

21

5116031

SPRING NUT

2шт.

21

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

8шт.

22

5162852

RIVET,7.3mm OD x 12mm L

35шт.

23

14042277

NUT,M6

12шт.

24

47123948

BRACKET

2шт.

25

13276117

SCREW,Pozidriv Pan Hd, M6 x 14mm, Cl 5.8, Full Thd

4шт.

26

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

10шт.

27

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

2шт.

27

16046224

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

5шт.

27

16046024

BOLT,Hex, M8 x 140, 8.8

1шт.

28

5178210

SEALING WASHER,M7 x 27 x 3 Thk

8шт.

28

87325114

RUBBER WASHER

12шт.

28

13578404

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

8шт.

29

14064514

SCREW,Cheese Hd, M6 x 12mm, Cl 5.8

4шт.

30

14508087

PLUG,40mm ID

8шт.

31

5162851

RIVET,7.3mm OD x 19mm L

2шт.

32

87658587

HANDLE

ASSY

1шт.
