Запчасти Case IH FARMALL 85U (1.93.3/ A[01]) - SEAT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

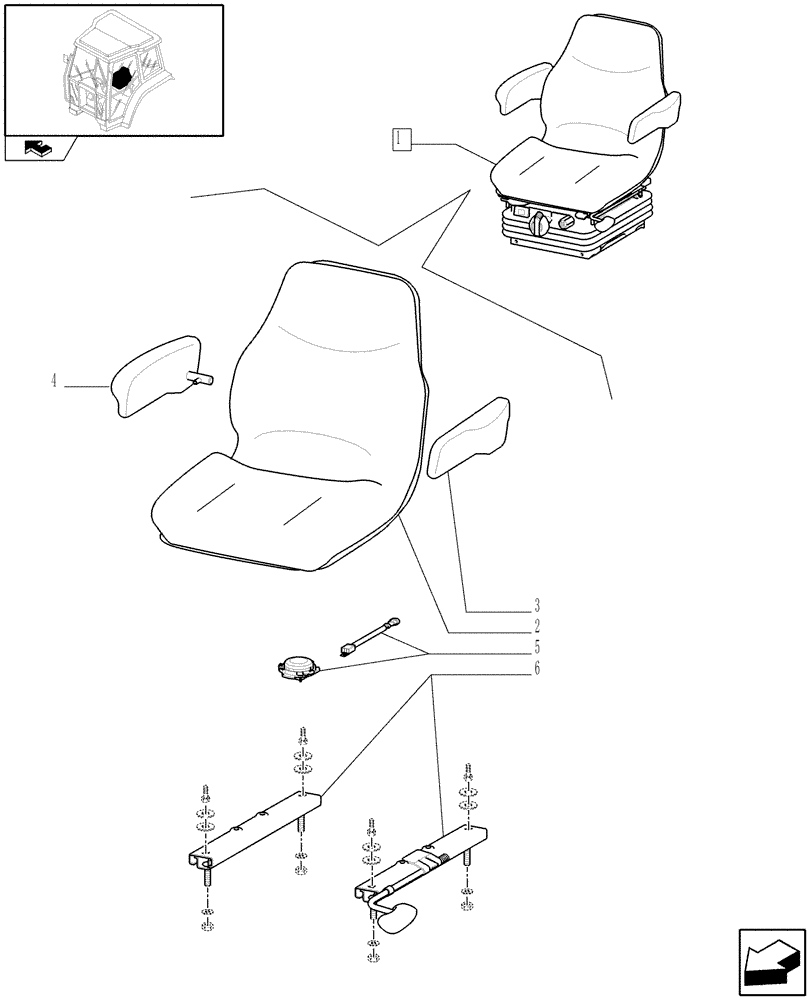

Схема запчастей Case IH FARMALL 85U - (1.93.3/ A[01]) - SEAT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
home
2
1
5
6
4
3

Артикул

Название

Примечание

Количество

1

47125336

DRIVER SEAT

ASSY, W/Cab, In Alternative to 84264533, Serial Range: -C6342

1шт.

1

47131667

INSTRUCTIONAL SEAT

ASSY, L/Cab

1шт.

1

84166907

DRIVER SEAT

ASSY, W/Cab, Start Serial: D6342

1шт.

2

47127885

DRIVER SEAT

W/Cab, Clotch, Serial Range: -C6342

1шт.

2

87302233

DRIVER SEAT

L/Cab, Wheat Vinyl

1шт.

2

84167006

SEAT BACK

W/Cab, Start Serial: D6342

1шт.

3

47127888

ARMREST

LH, Long

1шт.

4

47127889

ARMREST

RH, Long

1шт.

5

47127890

KIT

O.P.S. and Harness

1шт.

6

47127868

KIT

1шт.

Выбрано товаров: 10
