(1.93.3/02) - SWIVEL FABRIC SEAT WITH AIR SUSPENSION, SWITCH AND ARMREST - W/CAB (VAR.330859)

Запчасти Case IH FARMALL 85U (1.93.3/02) - SWIVEL FABRIC SEAT WITH AIR SUSPENSION, SWITCH AND ARMREST - W/CAB (VAR.330859) (10) - OPERATORS PLATFORM/CAB

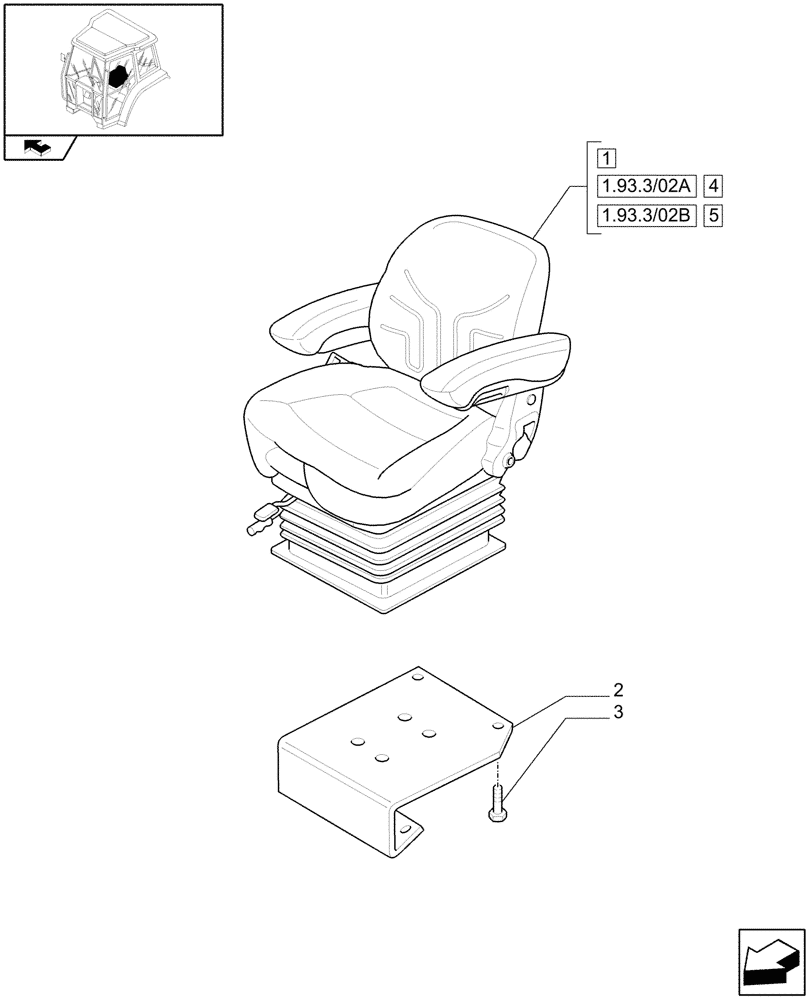

Схема запчастей Case IH FARMALL 85U - (1.93.3/02) - SWIVEL FABRIC SEAT WITH AIR SUSPENSION, SWITCH AND ARMREST - W/CAB (VAR.330859) (10) - OPERATORS PLATFORM/CAB
1.93.3/02a
home
5
2
4
1
3
1.93.3/02b
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87598638

DRIVER SEAT

, Serial Range: -C6342

1шт.

2

87602056

BRACKET

1шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

4

84164865

DRIVER SEAT

"GRAMMER", ASSY, Serial Range: D6342-C7342

1шт.

5

47476143

DRIVER SEAT

, Start Serial: D7342

1шт.

Выбрано товаров: 6
