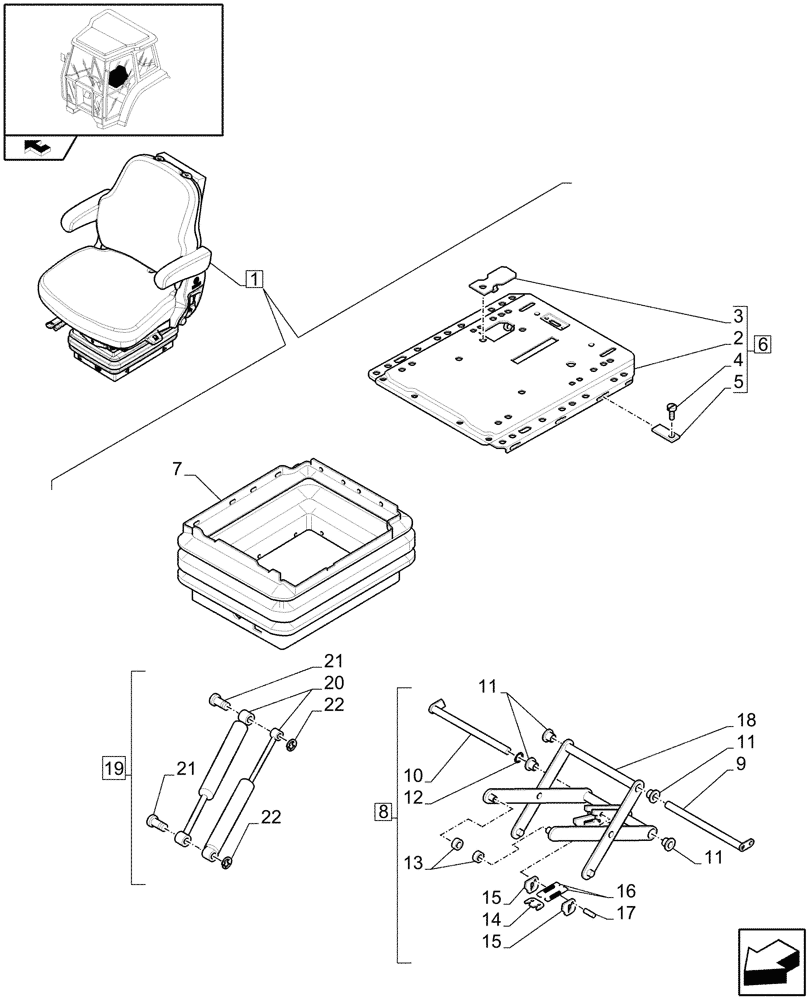

Запчасти Case IH FARMALL 85U (1.93.3/01E[04]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN - D7342 (10) - OPERATORS PLATFORM/CAB

1

47476149

DRIVER SEAT

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE, Incl in 6

1шт.

3

47124772

COVER

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW, Incl in 6

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE, Incl in 6

1шт.

6

47124776

SUSPENSION

ASSY, Incl 2 - 6

1шт.

7

85817428

BELLOWS

1шт.

8

47124783

SUSPENSION

ASSY, Incl 9 - 17

1шт.

9

47124784

BOLT

1шт.

10

82035146

BOLT

1шт.

11

82035048

BUSHING

4шт.

12

NSS

NOT SOLD SEPARAT

Incl in 8

1шт.

13

9958784

SPACER

4шт.

14

9958782

PLATE

1шт.

15

9958792

PLATE

2шт.

16

84171414

TENSION SPRING

2шт.

17

9958793

BOLT

1шт.

18

NSS

NOT SOLD SEPARAT

SWING ARM, Incl in 8

1шт.

19

71491397

SHOCK ABSORBER

ASSY, Incl 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Incl in 19

1шт.

21

9959588

BOLT,M8 x 22mm

2шт.

22

9972178

CIRCLIP,M5

2шт.
