(1.93.3/01E[01]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN - D7342

Запчасти Case IH FARMALL 85U (1.93.3/01E[01]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN - D7342 (10) - OPERATORS PLATFORM/CAB

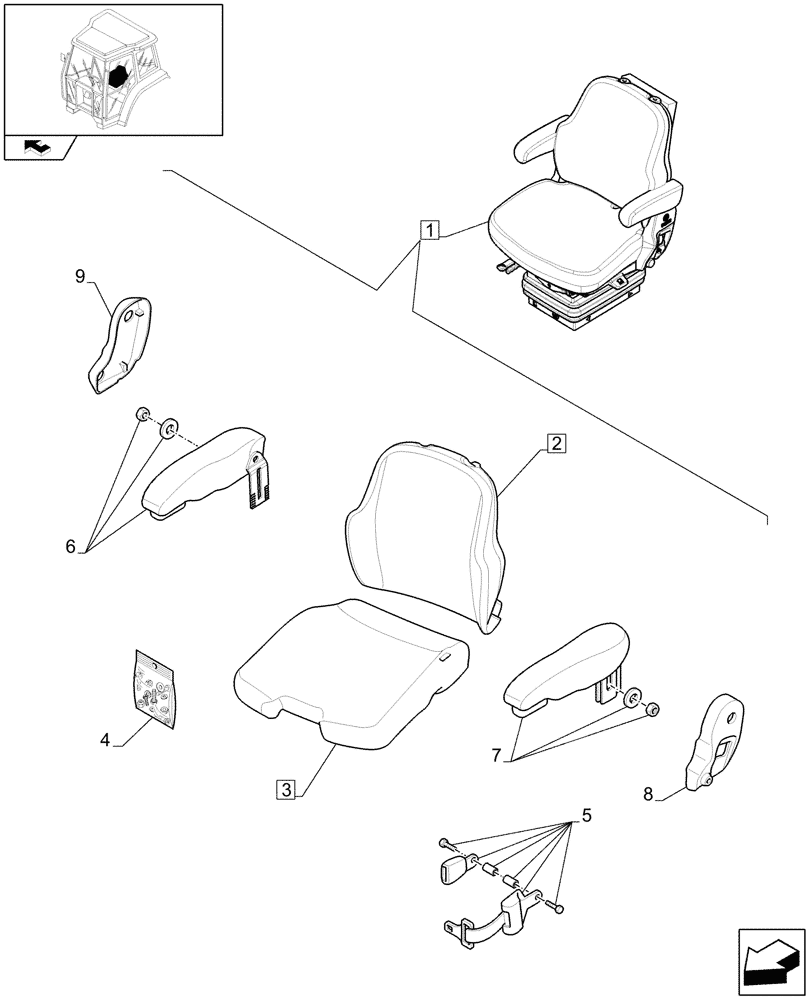

Схема запчастей Case IH FARMALL 85U - (1.93.3/01E[01]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN - D7342 (10) - OPERATORS PLATFORM/CAB
3
home
7
9
5
1
8
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476149

DRIVER SEAT

1шт.

2

87752740

CUSHION

ASSY, Incl 4

1шт.

3

87752205

SEAT CUSHION

ASSY, Incl 4

1шт.

4

84191200

SET OF PARTS

SMALL PARTS CUSHION

1шт.

5

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

6

87536543

ARMREST

1шт.

7

87536542

ARMREST

1шт.

8

71491405

COVER

1шт.

9

84171458

COVER

1шт.
