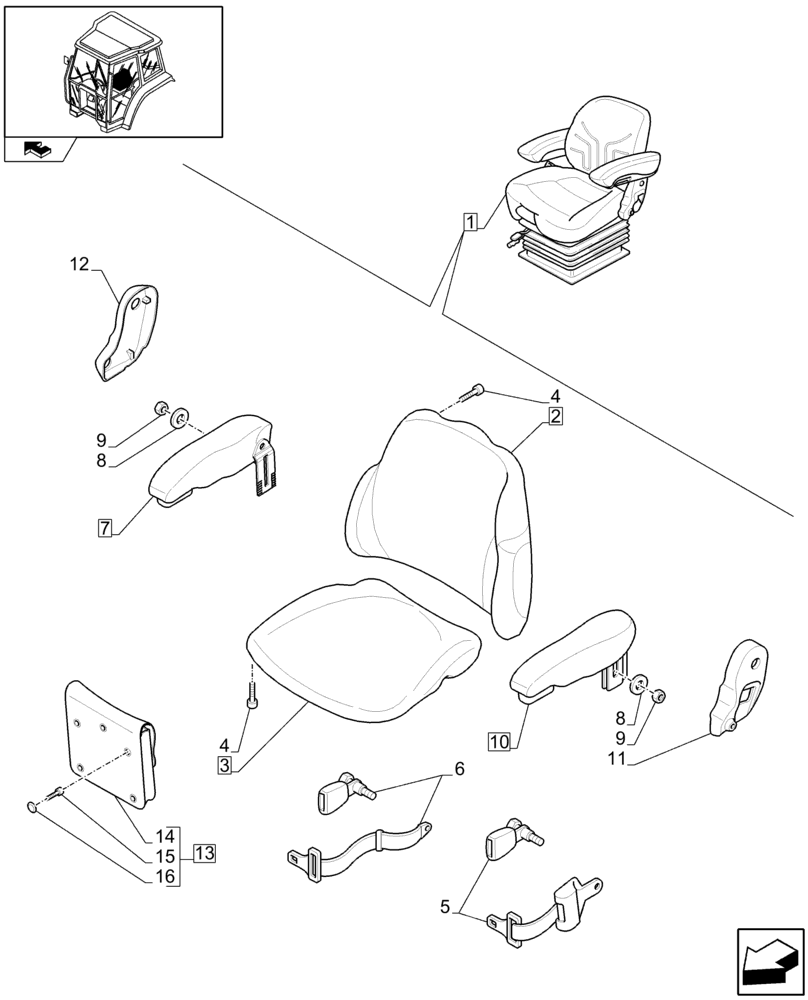

Запчасти Case IH FARMALL 85U (1.93.3/01C[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN - W/ CAB - C7342 (10) - OPERATORS PLATFORM/CAB

1

84264533

DRIVER SEAT

1шт.

2

84253107

CUSHION

ASSY, Incl 4 (Qty 4)

1шт.

3

84281117

SEAT CUSHION

ASSY, Incl 4 (Qty 3)

1шт.

4

82034997

SCREW,M5 x 25mm

7шт.

5

8408188

BALL JOINT

1шт.

6

47124950

SAFETY BELT

1шт.

7

87536543

ARMREST

ASSY, Incl 8 (Qty 1), 9 (Qty 1)

1шт.

8

9960692

WASHER

2шт.

9

82034880

NUT,M8

2шт.

10

87536542

ARMREST

ASSY, Incl 8 (Qty 1), 9 (Qty 1)

1шт.

11

5192699

COVER

1шт.

12

5192700

COVER

1шт.

13

47124555

BRIEF CASE

ASSY, Incl 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Incl in 13

1шт.

15

82034905

RIVET

5шт.

16

1-34-751-976

KNOB

5шт.
