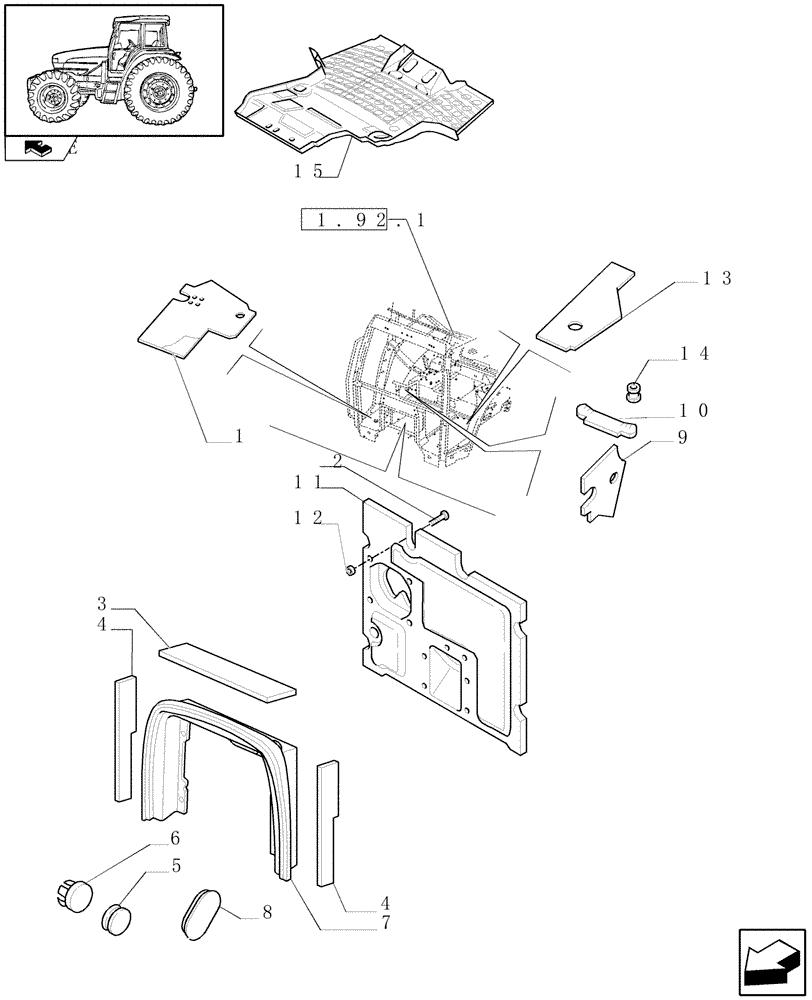

Запчасти Case IH FARMALL 85U (1.93.1) - FLOOR AND SOUNDPROOFING - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47130775

FOAM INSULATION

RH

1шт.

2

14064214

SCREW,Cheese Hd, M6 x 30mm, Cl 5.8

M6 x 30

5шт.

3

87521638

FOAM INSULATION

1шт.

4

87382723

FOAM INSULATION

2шт.

5

81862738

PLUG,M38 x 28 x 5mm

28MM

2шт.

6

81865569

PLUG,Grommet automatic pick up

2шт.

7

87596361

SOFT TRIM

Incl. 3, 4

1шт.

8

5173209

PLUG

1шт.

9

82005790

FOAM INSULATION

LH

1шт.

10

82003323

FOAM INSULATION

1шт.

11

87303690

INSULATING PANEL

1шт.

12

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

7шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

7шт.

13

47130776

FOAM INSULATION

LH

1шт.

14

5131633

CIRCLIP

1шт.

15

47137486

MAT

Wheat color

1шт.

15

84170027

MAT

Black color

1шт.
