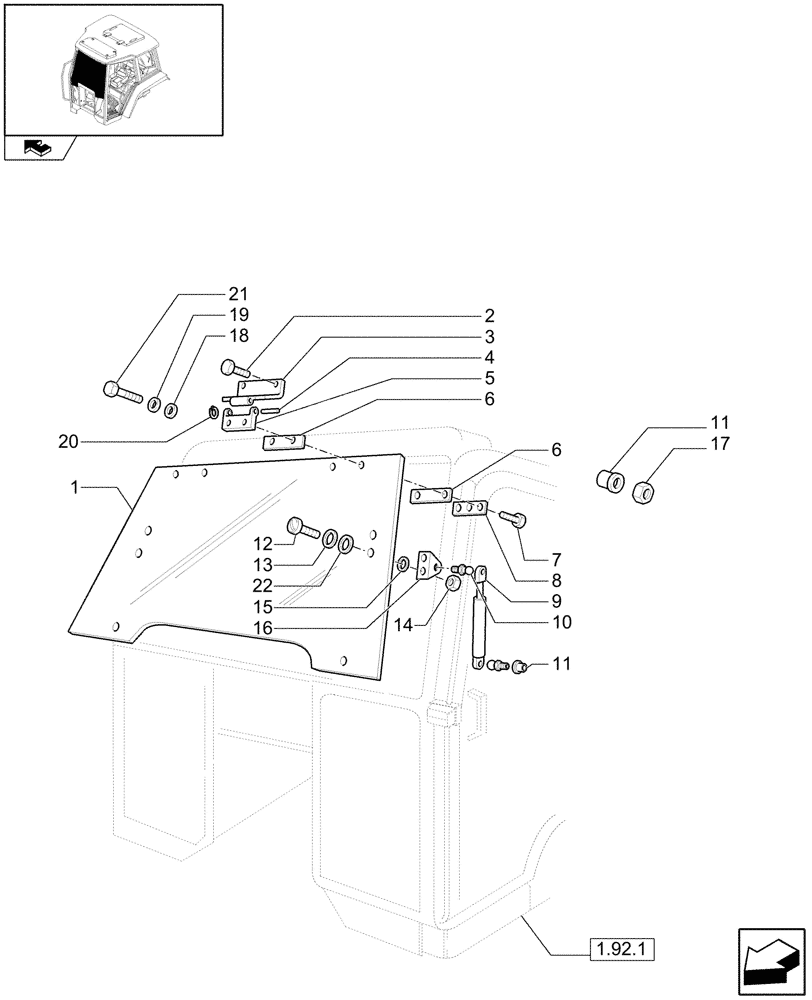

Запчасти Case IH FARMALL 85U (1.92.3/01[01]) - HINGED WINDSHIELD - FASTENERS - W/CAB (VAR.330660) (10) - OPERATORS PLATFORM/CAB

1

87580303

CAB GLASS ASSY

1шт.

2

16200624

BOLT,Hex, M8 x 25mm, Cl 8.8

4шт.

3

82001003

BRACKET

2шт.

4

5183781

PIN,8mm OD x 88mm L

2шт.

5

82000317

HINGE

2шт.

6

81865253

SEAL

4шт.

7

82007919

SCREW,Phillips Drive, Pan HD, M6 x 20mm

M6 x 20

4шт.

8

81873554

SPACER

2шт.

9

82001505

GAS STRUT

Front

2шт.

10

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

4шт.

11

15629111

RIVET,Flat, M8 OD x 17.5mm L

M8 x 17.5

3шт.

12

5177632

BOLT,M8 x 1.25 x 30mm

4шт.

13

81865261

WASHER,6.8mm ID x 12mm OD x 3mm Thk

4шт.

14

16104414

LOCK NUT,M8 x 1.25

4шт.

15

81872309

SPACER,8.2mm ID x 36mm OD x 10.2mm L

4шт.

16

82001004

BRACKET

2шт.

17

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

18

5178210

SEALING WASHER,M7 x 27 x 3 Thk

1шт.

19

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

1шт.

20

11087876

CIRCLIP,M7

2шт.

21

16201824

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

1шт.

22

12647004

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

4шт.
