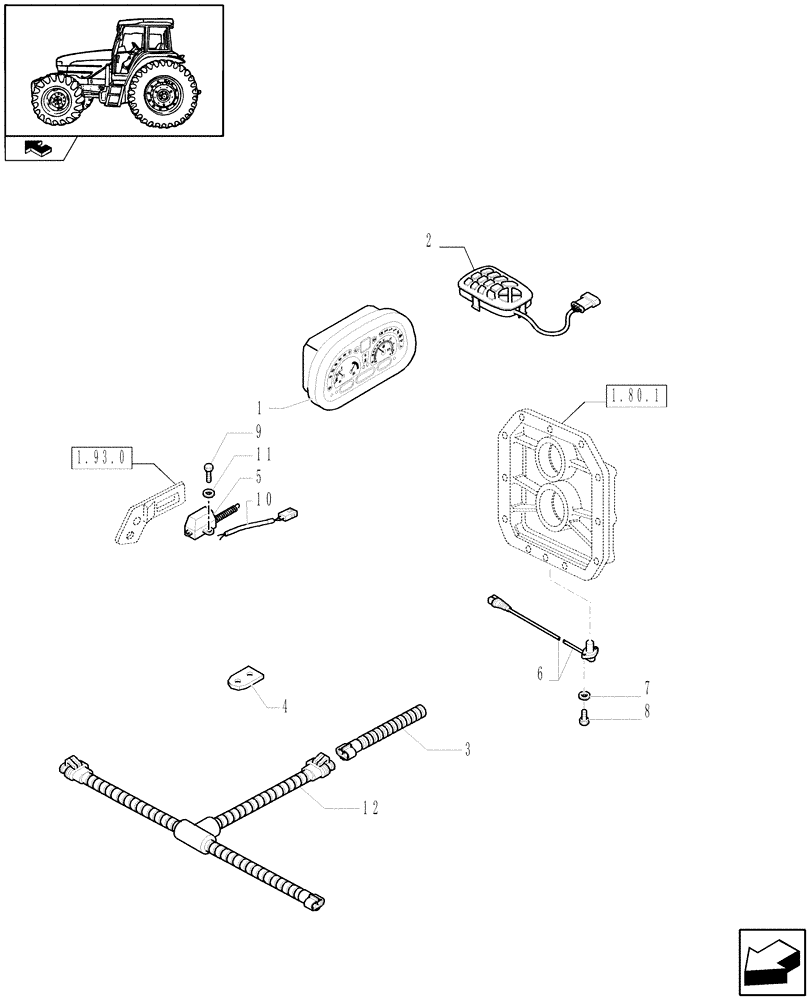

Запчасти Case IH FARMALL 85U (1.91.1/01) - DIGITAL INSTRUMENT CLUSTER - W/CAB (VAR.330746-331746-332746) (10) - OPERATORS PLATFORM/CAB

1

87671367

INSTRUMENT CLUSTER

Analogue/Digital

1шт.

2

87350790

CONTROL

Keypad

1шт.

VAR.331746-332746 Only

1шт.

3

87345428

TERMINAL CONNECTOR,120Ohm/0.5W, 42 Pins

CAN Bus Terminator

1шт.

VAR.330746 only

1шт.

4

5167199

PLATE

1шт.

VAR.330746-332746 only

1шт.

5

5121786

LIGHT SWITCH

1шт.

VAR.330746-332746 only

1шт.

6

87564763

SENSOR

1шт.

7

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

8

10977711

BOLT,Hex, M5 x 14mm, Cl 5.8, Full Thd

2шт.

9

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

VAR.330746-332746 only

1шт.

10

5198899

WIRE HARNESS

1шт.

VAR.330746-332746 only

1шт.

11

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

VAR.330746-332746 only

1шт.

12

87358373

WIRE CONNECTOR

1шт.

VAR.330746 only

1шт.
