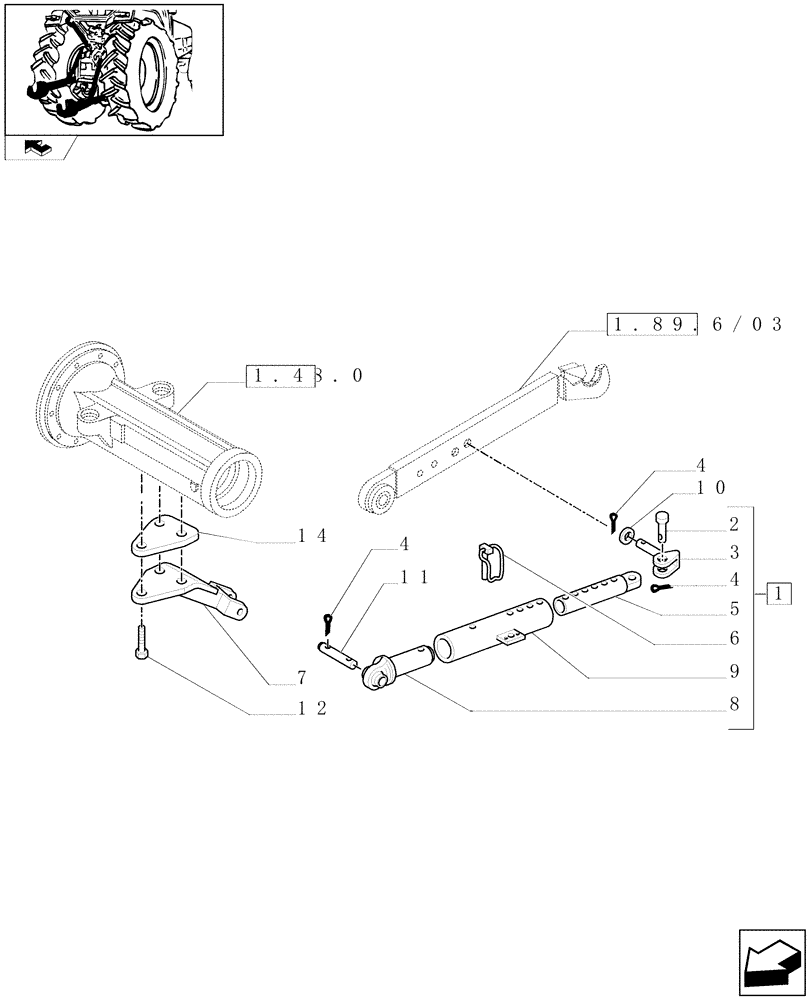

Запчасти Case IH FARMALL 85U (1.89.9/01) - THREE POINT HITCH FOR EDC - SUPPORT & STABILIZER SPRAG - W/CAB (VAR.331902-331922) (09) - IMPLEMENT LIFT

1

5184540

STABILIZER

2шт.

2

47133051

PIN,20mm OD x 59mm L

2шт.

3

5123274

PIN

2шт.

4

10798301

COTTER PIN,M6.3 x 36

6шт.

5

5184565

STABILIZER

Rear

2шт.

6

82019234

PIN,14mm OD

4шт.

7

47123373

SUPPORT

2шт.

8

5174917

END

Front

2шт.

9

5184564

ADJUSTING SLEEVE

2шт.

10

562106

WASHER,25.50mm ID x 45.00mm OD

2шт.

11

5125861

PIN,19mm OD x 105mm L

Front

2шт.

12

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

6шт.

13

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

14

5199434

PLATE

JXU 105 / 105U

2шт.
