(1.89.6/02E) - THREE POINT HITCH WITH QUICK ATTACH ENDS FOR MDC - UPPER LINK - BREAKDOWN

Запчасти Case IH FARMALL 85U (1.89.6/02E) - THREE POINT HITCH WITH QUICK ATTACH ENDS FOR MDC - UPPER LINK - BREAKDOWN (09) - IMPLEMENT LIFT

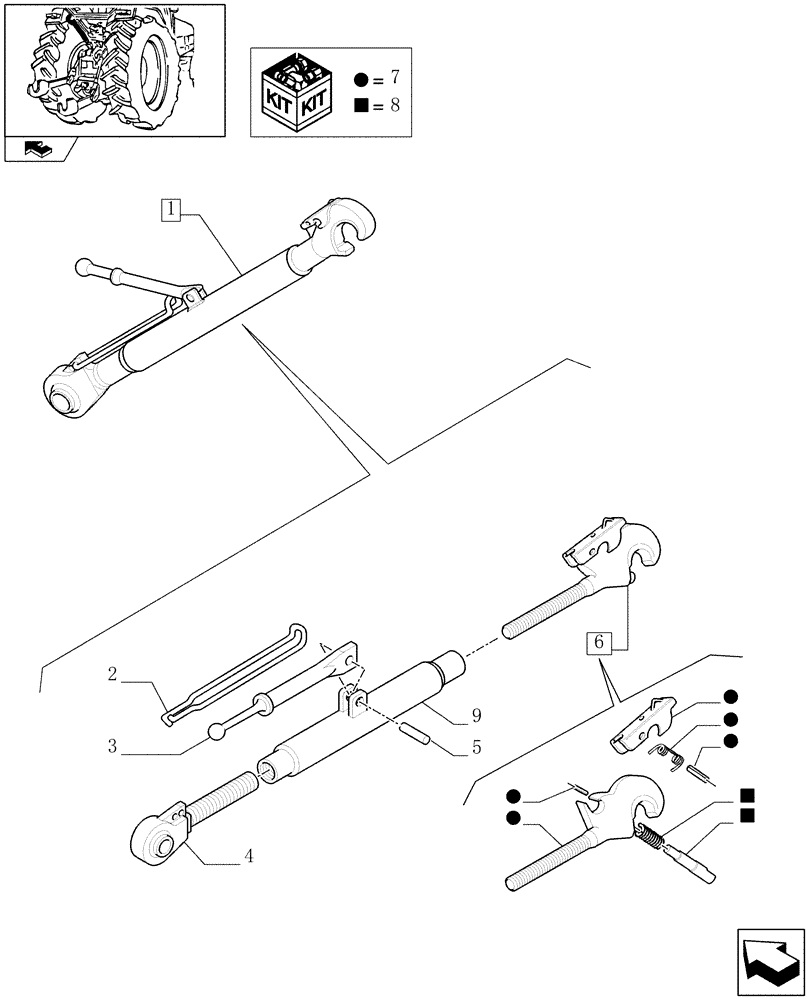

Схема запчастей Case IH FARMALL 85U - (1.89.6/02E) - THREE POINT HITCH WITH QUICK ATTACH ENDS FOR MDC - UPPER LINK - BREAKDOWN (09) - IMPLEMENT LIFT
9
7
7
8
2
5
home
8
6
3
7
7
4
7
1
8
7
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87695688

TOP LINK

1шт.

2

5140619

SPRING,215mm L

1шт.

3

5172394

LEVER

1шт.

4

5143008

LINK,M30 x 3

Front

1шт.

5

14174371

LOCK PIN,M12 x 30, Slotted

1шт.

6

87695689

HOOK

1шт.

7

87699051

KIT

1шт.

8

87699052

PIN

1шт.

9

5133112

ADJUSTING SLEEVE

1шт.
