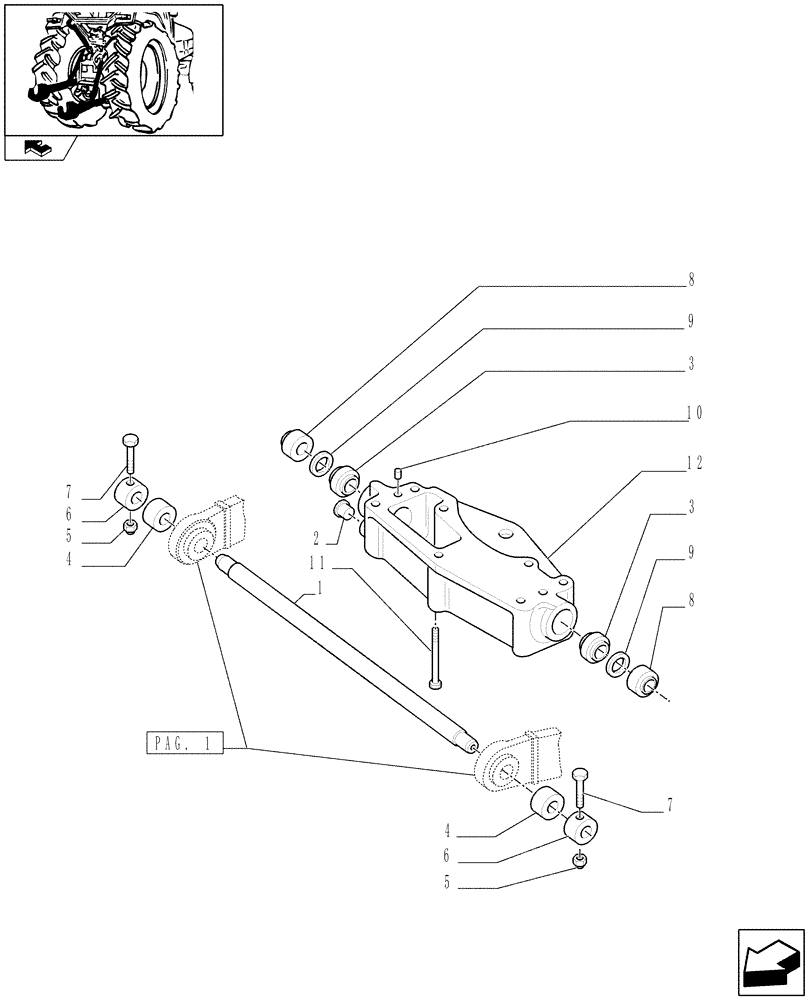

Запчасти Case IH FARMALL 85U (1.89.6[03]) - IMPLEMENT CARRIER - SUPPORT & STABILIZER BAR (09) - IMPLEMENT LIFT

1

5116243

SHAFT,600mm L

Sensing

1шт.

2

4997756

PLUG

1шт.

3

5116244

BUSHING,25mm ID x 25mm OD x 20mm L

2шт.

4

5116246

SPACER,25.5mm ID x 40mm OD x 25mm L

2шт.

5

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.

6

5116247

RING,24mm ID x 38.4mm OD x 25mm L

2шт.

7

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

8

5116245

SPACER,37mm ID x 42.06mm OD x 24mm L

2шт.

9

47129342

SEAL,23.1mm ID x 37mm OD x 12.3mm Thk

2шт.

10

5119529

DOWEL,15mm OD x 22mm L

M15 x 22

2шт.

11

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

7шт.

11

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

12

5124562

SUPPORT

1шт.
