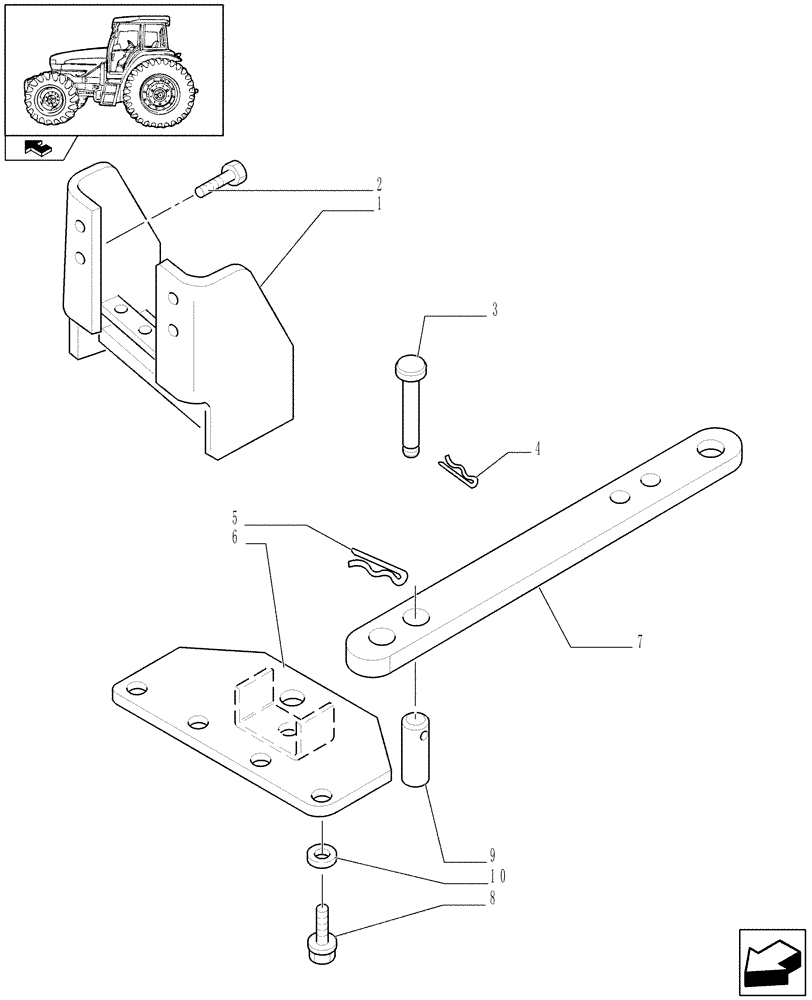

Запчасти Case IH FARMALL 85U (1.89.3/03) - SWAY-BAR (NA) (VAR.330905) (09) - IMPLEMENT LIFT

1

5178167

SUPPORT

1шт.

2

15981521

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

3

5181758

PIN,16mm OD x 119.5mm L

2шт.

4

82026318

COTTER PIN,1/8 x 2 5/16

Spring Retainer, 1/8" x 2-5/16"

4шт.

5

82000094

SPRING,40mm OD x 142mm L

1шт.

6

82003409

BRACKET

1шт.

7

5180877

DRAWBAR,780mm L x 60mm W x 40mm Thk

1шт.

8

15864324

BOLT,Hex, M16 x 1.5 x 130mm, Cl 8.8

4шт.

9

82006933

PIN,28mm OD x 134mm L

1шт.

10

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.
