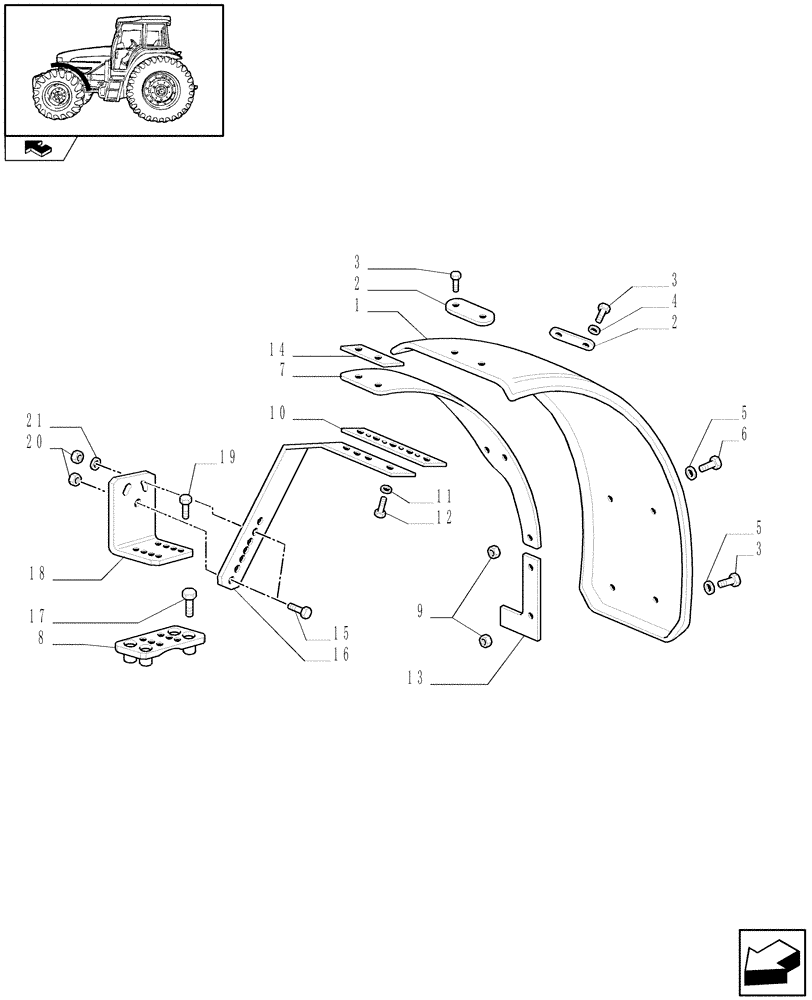

Запчасти Case IH FARMALL 85U (1.87.0/03) - ADJUSTABLE FRONT FENDERS (VAR.330495) (08) - SHEET METAL

1

5122325

FRONT FENDER

400MM

2шт.

2

5148599

REINFORCEMENT

4шт.

3

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

10шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

10.5 x 20 x 2.3

4шт.

5

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

6

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

7

5148596

PANEL

LH

1шт.

7

5148597

PANEL

RH

1шт.

8

87721771

SUPPORT

2шт.

9

12574521

LOCK NUT,M10 x 1.25, Cl 10

8шт.

10

5148598

PLATE

2шт.

11

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

13

5148600

REINFORCEMENT

LH

2шт.

13

5149441

REINFORCEMENT

RH

2шт.

14

5148601

PLATE

2шт.

15

11227024

BOLT,Hex, M14 x 1.5 x 65, 8.8

4шт.

16

5148594

SUPPORT

LH

1шт.

16

5148595

SUPPORT

RH

1шт.

17

15835231

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

M16x1.5x70

8шт.

18

87721750

SUPPORT

2шт.

19

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

8шт.

20

12574815

LOCK NUT,M14 x 1.5, Cl 8

4шт.

21

10520104

WASHER,14.4mm ID x 26mm OD x 3mm Thk

2шт.
