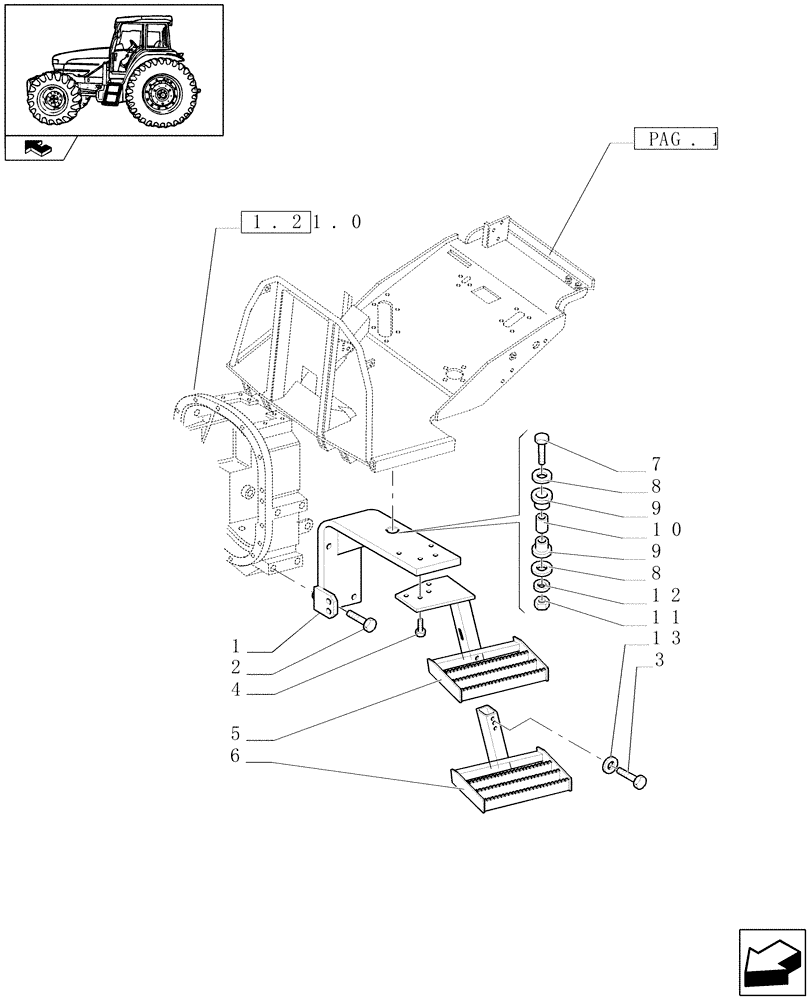

Запчасти Case IH FARMALL 85U (1.87.0[03]) - LADDER AND SUPPORTS - L/CAB (08) - SHEET METAL

1

87676314

CONSOLE

LH, Front

1шт.

1

87676431

CONSOLE

RH, Front

1шт.

2

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

4шт.

2

15981224

BOLT,Hex, M16 x 1.5 x 65mm, Cl 8.8

4шт.

3

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

4

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

8шт.

5

5182170

STEP

LH, Upper

1шт.

5

5184803

STEP

RH, Upper

1шт.

6

82007964

STEP

Lower

2шт.

7

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

2шт.

8

5167723

WASHER,12.5mm ID x 75mm OD x 4mm Thk

4шт.

9

5187531

RUBBER WASHER,16.5mm ID x 60mm OD x 20mm Thk

4шт.

10

5167724

SPACER,12.25mm ID x 17mm OD x 38mm L

2шт.

11

16105021

LOCK NUT,M12 x 1.25, Cl 10

2шт.

12

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

13

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.
