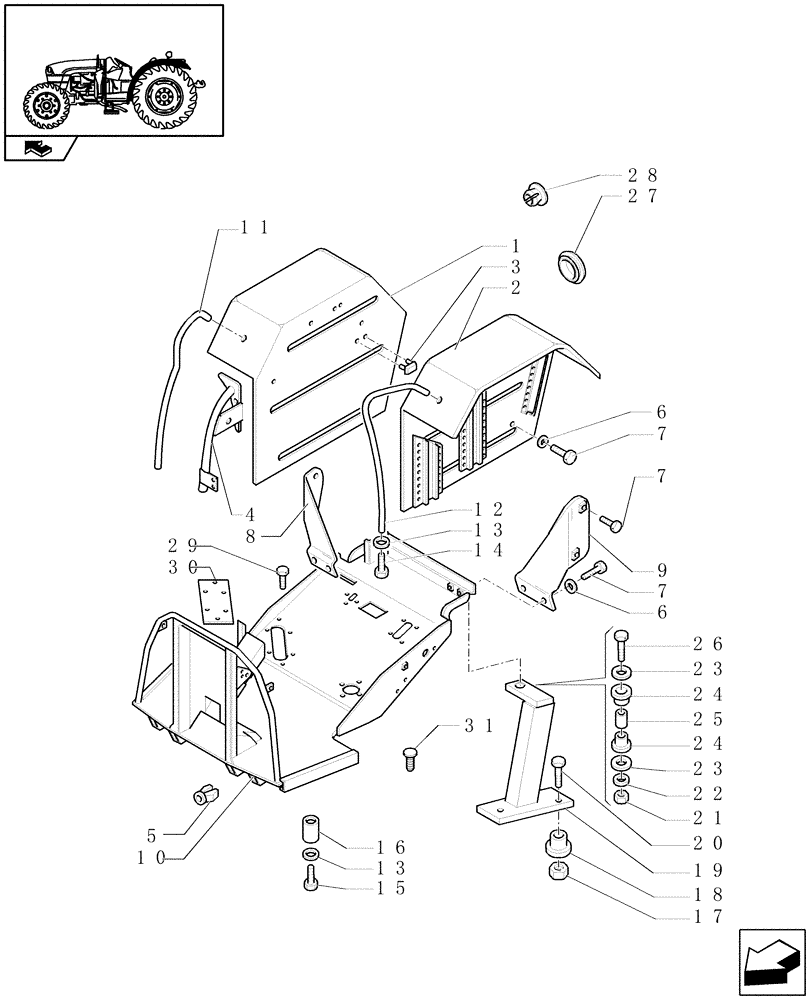

Запчасти Case IH FARMALL 85U (1.87.0[01]) - PLATFORM & REAR FENDERS - L/CAB (VAR.330870-333870) (08) - SHEET METAL

1

5199754

FENDER

RH, Serial Range: -C6877

1шт.

1

84350847

FENDER

RH, Start Serial: D6877

1шт.

1

5167768

REAR FENDER

RH, Serial Range: -C6877

1шт.

VAR.330870-333870, Rear Wide Fenders

1шт.

1

84350850

FENDER

RH, Start Serial: D6877

1шт.

VAR.330870-333870, Rear Wide Fenders

1шт.

2

5199749

REAR FENDER

LH

1шт.

2

5167767

REAR FENDER

LH

1шт.

VAR.330870-333870, Rear Wide Fenders

1шт.

3

5168078

RUBBER PAD

4шт.

4

5167856

SHIELD

1шт.

5

14115781

GROMMET

3шт.

6

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

12шт.

7

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

15шт.

8

5167783

BRACKET

RH

1шт.

9

5167769

BRACKET

LH

1шт.

10

87597865

RIGID PLATFORM

1шт.

11

5171234

HANDRAIL

RH

1шт.

12

5171233

HANDRAIL

LH

1шт.

13

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

14

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

JXU 105 / 105U

2шт.

16

5171791

SPACER

JXU 105 / 105U

2шт.

17

12575021

NUT,M18 x 1.5, Cl 10

4шт.

18

5167746

SPACER

4шт.

19

5169008

BRACKET

LH

1шт.

19

5169012

BRACKET

RH

1шт.

20

15985021

BOLT,Hex, M18 x 1.5 x 90mm, Cl 8.8

4шт.

21

16105021

LOCK NUT,M12 x 1.25, Cl 10

2шт.

22

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

23

5167723

WASHER,12.5mm ID x 75mm OD x 4mm Thk

D=12

4шт.

24

5187531

RUBBER WASHER,16.5mm ID x 60mm OD x 20mm Thk

4шт.

25

5167724

SPACER,12.25mm ID x 17mm OD x 38mm L

2шт.

26

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

2шт.

27

5112607

PLUG

D=15.5

2шт.

28

5112608

PLUG,9mm, Black

2шт.

29

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

6шт.

30

82018953

PLATE

1шт.

31

14591687

BUTTON,8mm OD x 7.5mm L, Black

6.5 x 7.5

3шт.

VAR.330870-333870, Rear Wide Fenders

1шт.
