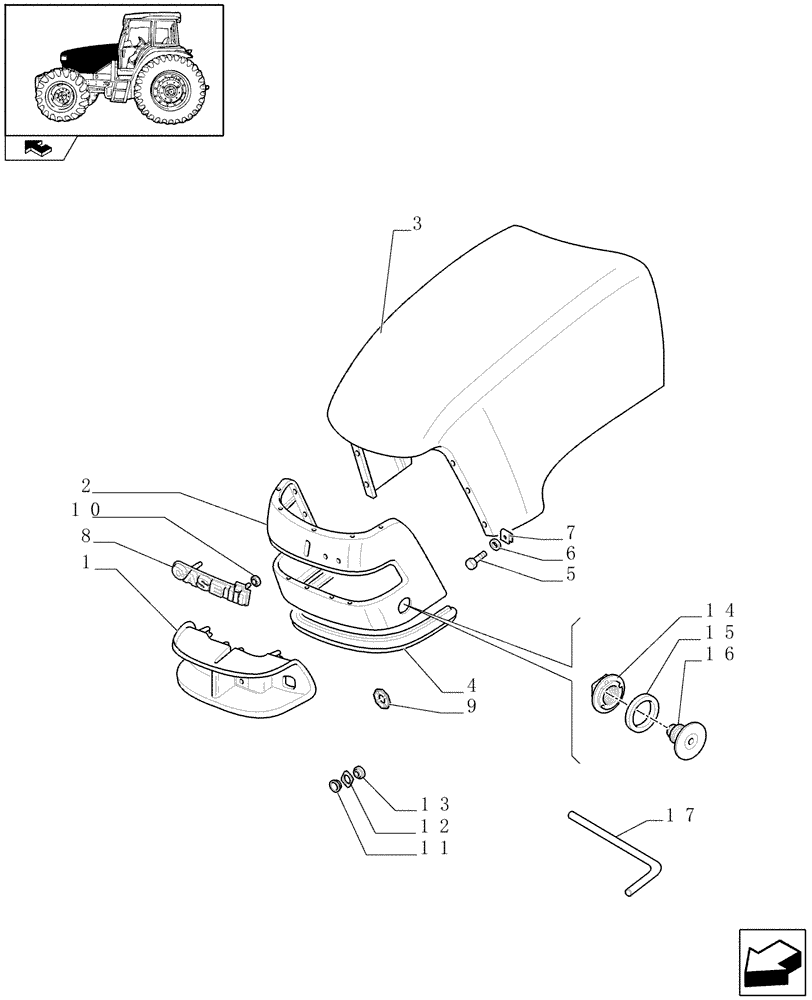

Запчасти Case IH FARMALL 85U (1.83.0[01]) - HOODS (08) - SHEET METAL

1

5199748

RADIATOR PANEL

1шт.

W/VAR.330499, Base Colour For Var

1шт.

2

47134973

GRILLE

1шт.

3

87574483

ENGINE HOOD PANEL

L/Cab

1шт.

3

87574481

ENGINE HOOD PANEL

W/Cab

1шт.

4

47123028

RUBBER STRIP

1550MM

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

11шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

11шт.

7

14371774

SPRING NUT,M6, U, 12mm long

8шт.

8

87716228

EMBLEM

1шт.

9

47126667

SPRING CLIP

7шт.

10

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

11

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

1шт.

12

87672920

RUBBER SEAL,19mm ID x 30mm L x 3mm Thk

1шт.

13

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

1шт.

14

84288183

NUT

, Start Serial: D6487

1шт.

15

84288762

GASKET

, Start Serial: D6487

1шт.

16

84288187

BUTTON,M30 x 1, RH Thd

, Start Serial: D6487

1шт.

17

84309099

ROD,6mm OD

, Start Serial: D6651

1шт.
