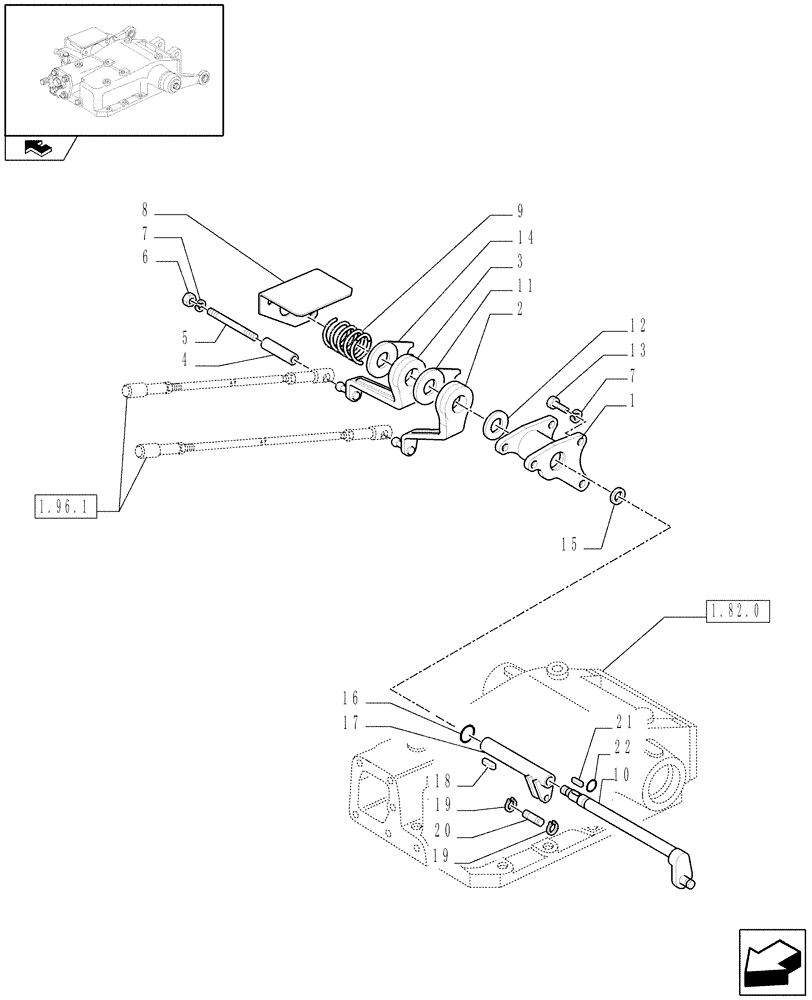

Запчасти Case IH FARMALL 85U (1.82.5[01]) - LIFT - CONTROL PARTS (07) - HYDRAULIC SYSTEM

1

5129377

SUPPORT

1шт.

2

5129376

LEVER

1шт.

3

5166615

LEVER

1шт.

4

5117204

SPACER,8.5mm ID x 12mm OD x 51.5mm L

3шт.

5

13544320

STUD

M8

3шт.

6

16100814

NUT,M8, Cl 8, DAC

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

8

5129372

PLATE

1шт.

9

4952761

SPRING,Compression, 34mm OD x 25.5mm L

1шт.

10

5166616

SPINDLE,242.5mm L

1шт.

11

5165246

PLATE

1шт.

12

5165368

SHIM,22.2mm ID x 35mm OD x 2.5mm Thk

1шт.

13

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

14

5165184

PLATE

1шт.

15

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

16

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

17

5166617

SHAFT

1шт.

18

14721010

KEY,4mm x 4mm x 14mm

Retaining

1шт.

19

11065676

SNAP RING,M8, Ext

2шт.

20

5113008

PIN,8mm OD x 26mm L

1шт.

21

10617610

KEY,5mm x 5mm x 10mm

Retaining

1шт.

22

14453080

O-RING,0.426" ID x 0.07"

1шт.
