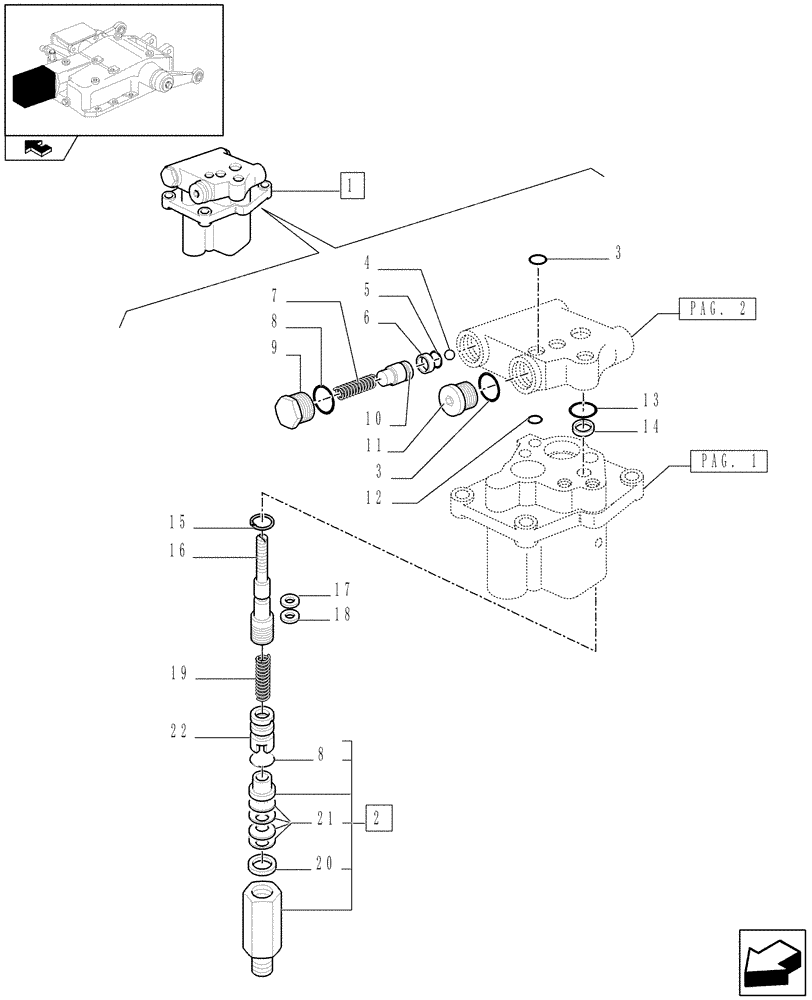

Запчасти Case IH FARMALL 85U (1.82.4[03]) - LIFT CONTROL VALVE - VALVES & PARTS (07) - HYDRAULIC SYSTEM

1

47135711

CONTROL VALVE

1шт.

47135711R

REMAN-HYD VALVE

FARMALL 105U,FARMALL 95U, FARMALL 85U All (1/08-)

1шт.

47135711C

CORE-VALVE HYD

Return Number

1шт.

2

5117739

VALVE PRESSURE RELIE,M20 x 1.5

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

4

20063460

BALL,7.14mm OD, Gr 100

D=7.144

1шт.

5

14456881

O-RING,0.362" ID x 0.103" Width

1шт.

6

5155831

GUIDE RING,9.2mm ID x 16mm OD x 3.3mm L

1шт.

7

4999311

SPRING

1шт.

8

14457381

O-RING,17.12mm ID x 2.62" Width

2шт.

9

5155828

PLUG,M20 x 1.5

M20 x 1.5

1шт.

10

5155830

PISTON

1шт.

11

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

12

14452680

O-RING,0.208" ID x 0.07" Width

1шт.

13

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

14

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

15

13397476

SNAP RING,M10.8, Int

1шт.

16

5155832

PIN,16mm OD x 81mm L

1шт.

17

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

18

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1.78 x 6.75

1шт.

19

5155844

SPRING,Compression, 11mm OD x 34mm L

1шт.

20

4951123

SPRING WASHER,10.1mm ID x 20.4mm OD x 3mm Thk

1шт.

21

586761

VALVE SPRING,10.2mm ID x 20mm OD x 1.1mm Thk

22шт.

22

5163620

SPOOL

Descent Speed

1шт.
