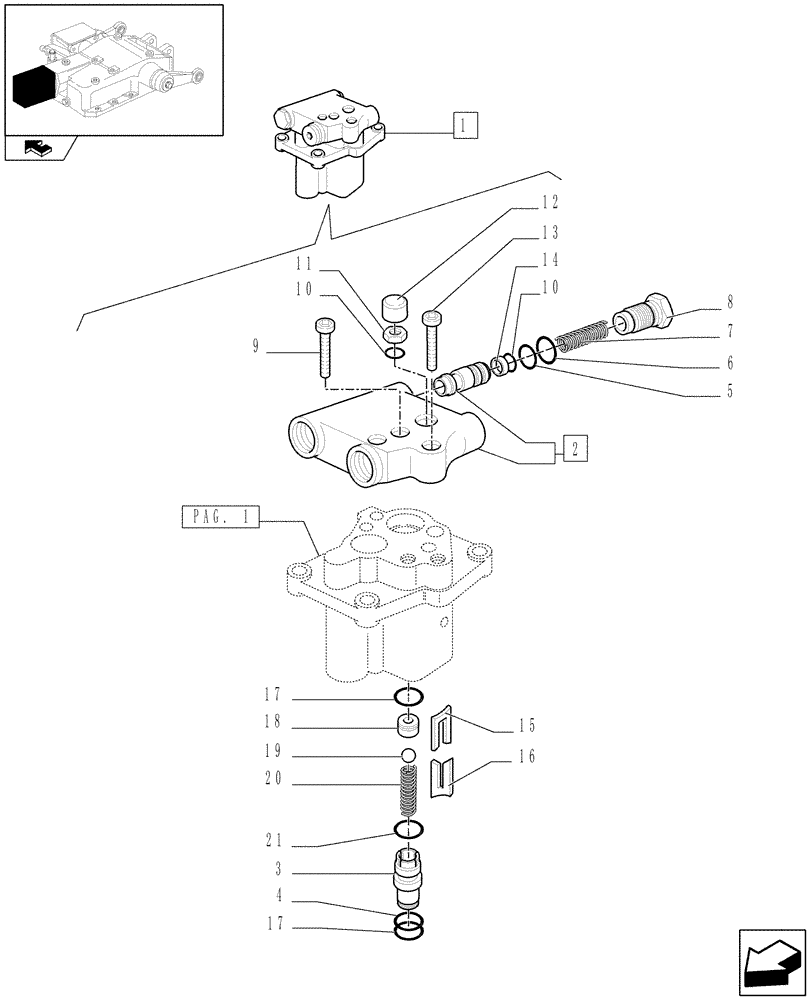

Запчасти Case IH FARMALL 85U (1.82.4[02]) - LIFT CONTROL VALVE - VALVES & PARTS (07) - HYDRAULIC SYSTEM

1

47135711

CONTROL VALVE

1шт.

2

5166310

COVER

1шт.

3

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

4

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

5

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

6

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

7

5156466

SPRING

1шт.

8

5156465

PLUG,M20 x 1.5

1шт.

9

14308324

SCREW,M10 x 1.25 x 70mm, Cl 8.8

1шт.

10

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1.78 x 8.73

2шт.

11

16100814

NUT,M8, Cl 8, DAC

1шт.

12

5132136

CAP COVER,M8

1шт.

13

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

14

5137198

GUIDE RING,8.6mm ID x 13mm OD x 2.3mm W

D = 13 x 2.2

1шт.

15

5148905

SPACER,3mm Thk

1шт.

16

5148907

SPACER,3mm Thk

1шт.

17

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

18

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

19

20063580

BALL,13.49mm OD, Gr 100

D=17/32"

1шт.

20

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

21

14457581

O-RING,0.799" ID x 0.103" Width

1шт.
