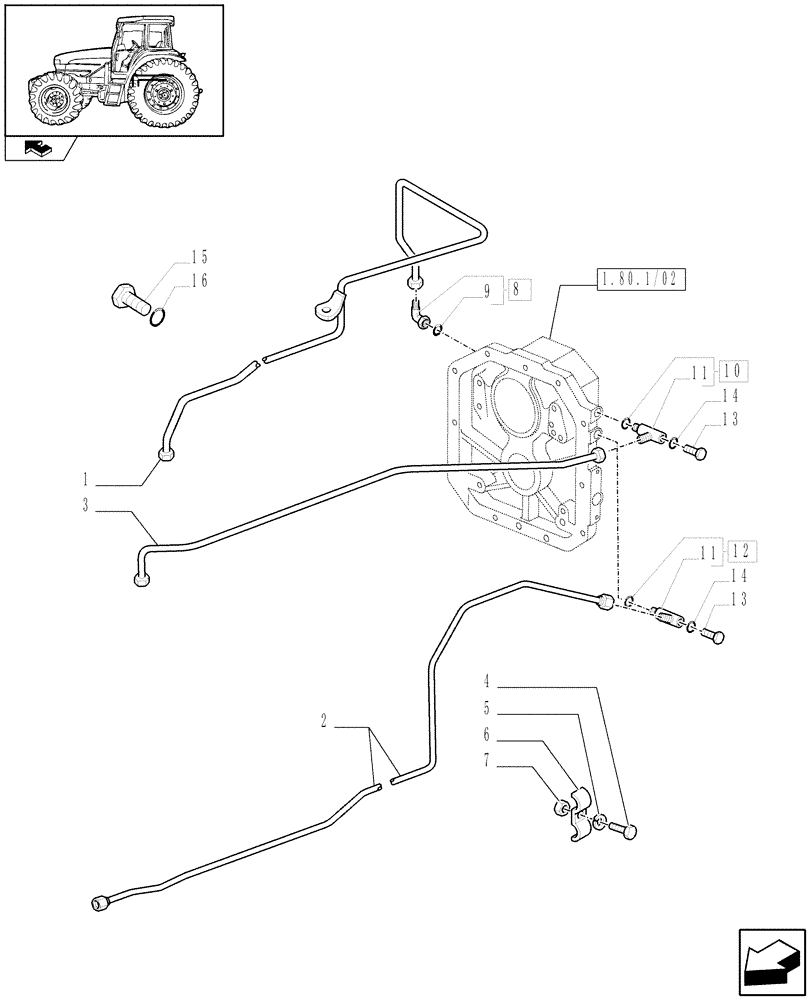

Запчасти Case IH FARMALL 85U (1.80.6) - POWER TAKEOFF FOR POWER SHUTTLE TRANSMISSION - PIPES (07) - HYDRAULIC SYSTEM

1

5168827

HYD TUBE

1шт.

2

5196724

HYD TUBE

1шт.

3

5168825

HYD TUBE

1шт.

4

10902724

SCREW,Hex, M6 x 28mm, Cl 8.8, Full Thd

1шт.

5

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

6

5156399

CLAMP

2шт.

7

15896214

NUT,M6, Cl 8

1шт.

8

87616449

HYD CONNECTOR

1шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

10

87617369

HYD CONNECTOR

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

12

47125351

ELBOW

1шт.

13

11903040

PLUG,M10 x 1 x 11, Brass

2шт.

14

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

2шт.

15

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.
