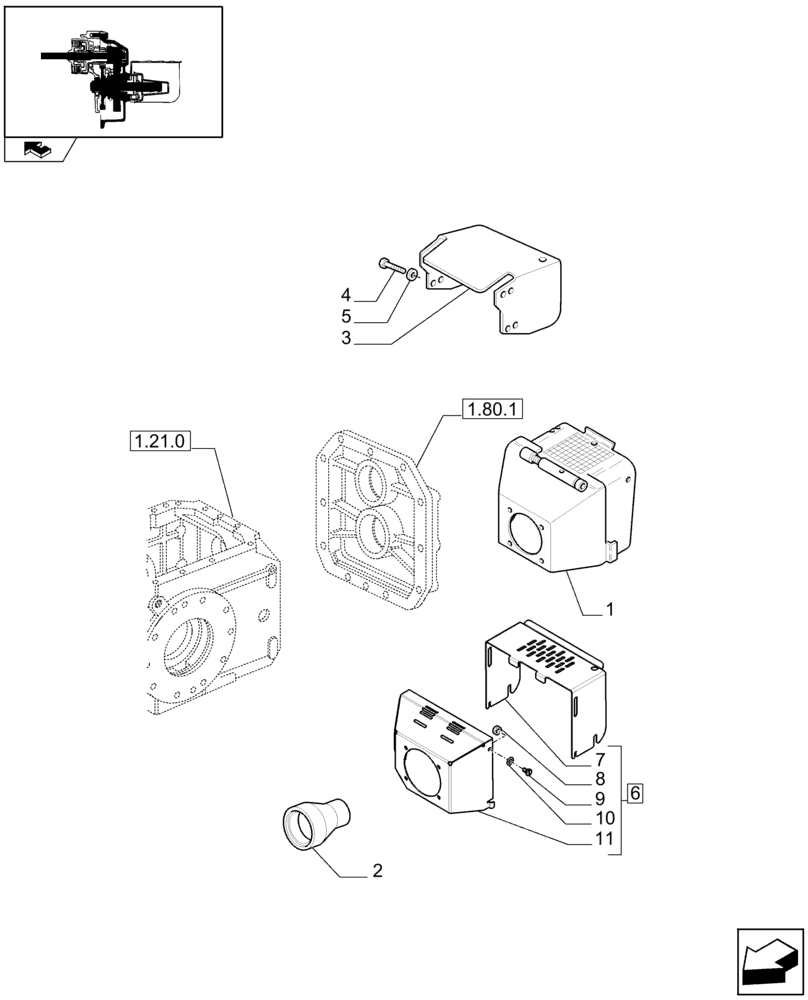

Запчасти Case IH FARMALL 85U (1.80.1/10) - PTO GUARDS (VAR.331294-333294-331797-330810-331810) (07) - HYDRAULIC SYSTEM

1

5199452

SHIELD

, Serial Range: -C7303

1шт.

W/VAR.330810, Flip Up Cover for 540 RPM PTO

1шт.

1

82003566

SHIELD

, Serial Range: -C7302

1шт.

W/VAR.331810, Flid Up Cover for 2 Speeds PTO

1шт.

2

47125899

COVER,109mm L

1шт.

3

5158411

SHIELD

1шт.

W/VAR.331294, Protection for Rear Hitches

1шт.

4

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

W/VAR.331294, Protection for Rear Hitches

1шт.

5

14499404

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

4шт.

W/VAR.331294, Protection for Rear Hitches

1шт.

6

84568331

COVER

ASSY, Start Serial: D7302

1шт.

W/VAR.331810, Flid Up Cover for 2 Speeds PTO

1шт.

6

47392295

SHROUD

ASSY, Start Serial: D7303

1шт.

W/VAR.330810, Flip Up Cover for 540 RPM PTO

1шт.

7

NSS

NOT SOLD SEPARAT

COVER

1шт.

W/VAR.331810, Flid Up Cover for 2 Speeds PTO

1шт.

7

84568358

COVER

1шт.

W/VAR.330810, Flip Up Cover for 540 RPM PTO

1шт.

8

68841

NUT,M8 x 1.25, Cl 8

2шт.

9

84568360

SCREW,Flat, M8

2шт.

10

84568361

SPRING-DISC

2шт.

11

NSS

NOT SOLD SEPARAT

SHEET

1шт.
