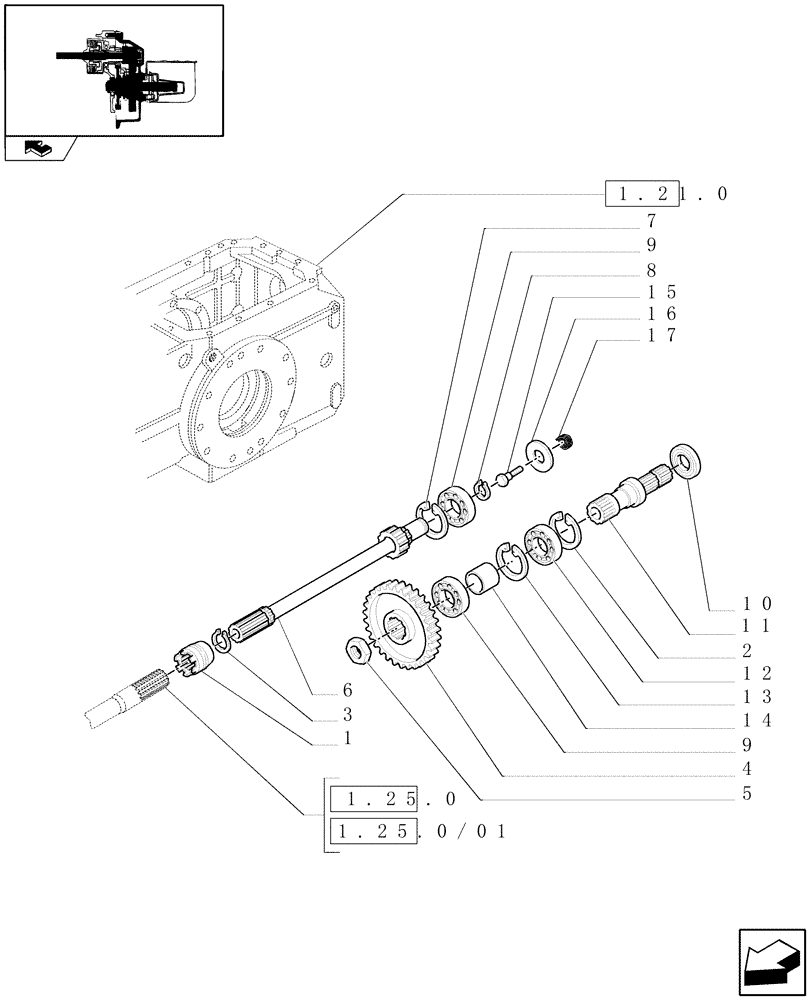

Запчасти Case IH FARMALL 85U (1.80.1[02]) - MECH. 540 POWER TAKE OFF - SHAFTS & GEARS (07) - HYDRAULIC SYSTEM

1

5198038

SLEEVE,12T

1шт.

2

11061976

SNAP RING,M80, Int

1шт.

3

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

4

5109725

DRIVEN GEAR

1шт.

5

5122985

NUT,Ring, M32, 1.5 Pitch

M32 x 1.5

1шт.

6

47132989

SHAFT

1шт.

7

11062476

SNAP RING,M90, Int

1шт.

8

11068876

SNAP RING,M40, Ext

1шт.

9

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

2шт.

10

5111518

SEAL,50mm ID x 80mm OD x 10mm Thk

50 x 80 x 10

1шт.

11

5109726

SHAFT

1шт.

12

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

13

5164109

CIRCLIP

1шт.

14

5109727

SPACER,40.1mm ID x 50mm OD x 43mm L

1шт.

15

47130774

PIN,13.5mm OD x 22mm L

D=80

1шт.

16

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

17

47127604

SPRING,Compression, 31mm OD x 33.3mm L

1шт.
