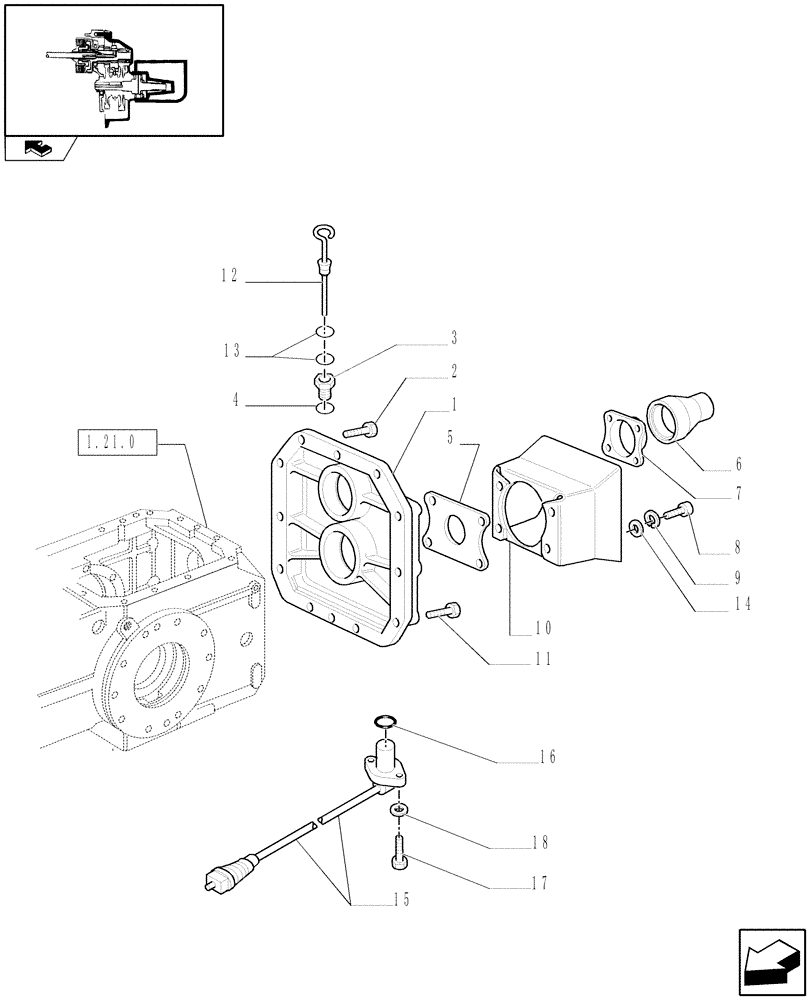

Запчасти Case IH FARMALL 85U (1.80.1[01]) - MECH. 540 POWER TAKE OFF - COVER, GUARD AND SENSOR (07) - HYDRAULIC SYSTEM

1

47127606

COVER

1шт.

2

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

3

5169718

PLUG,M22 x 1.5

1шт.

4

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

5

5104039

GUARD

1шт.

6

47125899

COVER,109mm L

Safety

1шт.

7

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

8

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

10569374

LOCK WASHER,M8

4шт.

10

5199413

SHIELD

L = 201 mm

1шт.

11

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

12

5169720

DIPSTICK,207mm L

Fluid Level

1шт.

13

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

14

10730324

WASHER,8.15mm ID x 17mm OD x 2mm Thk

D=8

4шт.

15

87564776

SENSOR

PTO Speed, Pick-up Stem 23.5mm long.

1шт.

16

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

17

10977711

BOLT,Hex, M5 x 14mm, Cl 5.8, Full Thd

2шт.

18

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.
