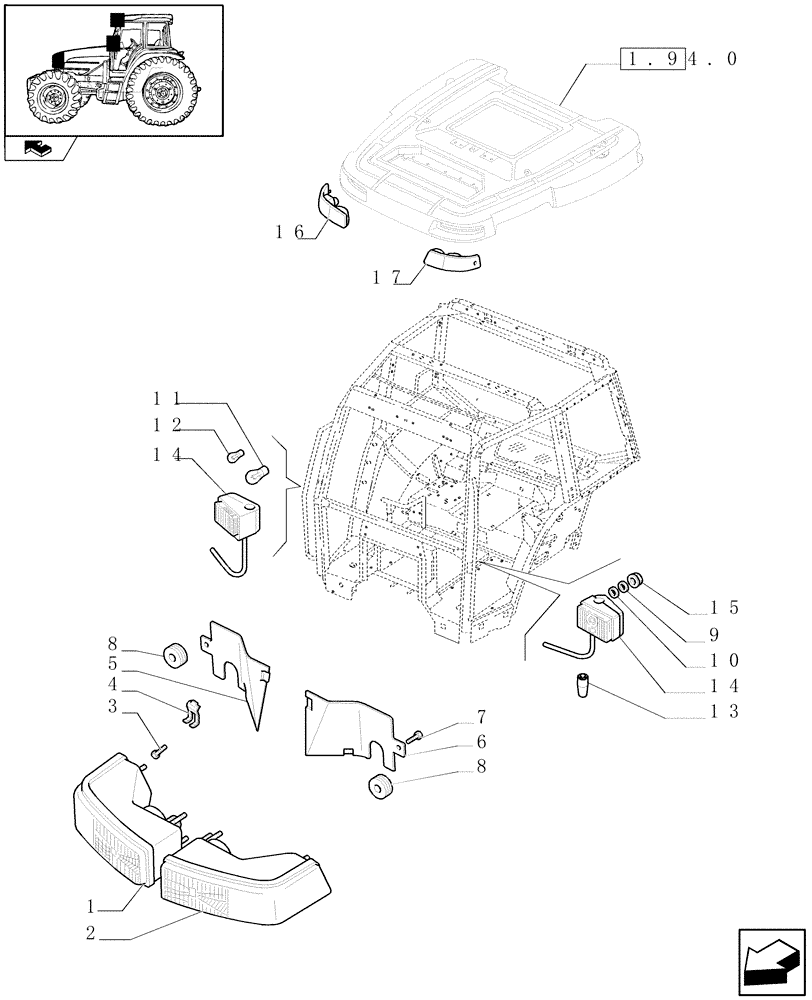

Запчасти Case IH FARMALL 85U (1.91.7[02]) - FRONT ROAD LIGHTING - W/CAB (06) - ELECTRICAL SYSTEMS

1

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

RH

1шт.

1

232450A2

HEADLIGHT,12V

RH

1шт.

VAR.330760-333760

1шт.

1

232452A2

HEADLIGHT

1шт.

VAR.330761

1шт.

2

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH

1шт.

2

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH

1шт.

VAR.330760-333760

1шт.

2

232453A2

HEADLIGHT

LH

1шт.

VAR.330761

1шт.

3

10559907

SELF-TAP SCREW,Hex Flg, M6.3 x 19mm

6шт.

4

44995046

CLIP

6шт.

5

47127434

PLATE

RH

1шт.

6

47127433

BRACKET

LH

1шт.

7

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

2шт.

8

10396780

INSULATING RING

2шт.

9

12605374

WASHER

D=6

4шт.

10

5155698

GASKET

4шт.

11

10857790

BULB,R10W, 12V, 5W

4шт.

12

529068

BULB,#1156, 12V, 21W

4шт.

13

47135267

ELEC CONNECTOR,Female, 4 Cavities

2шт.

14

82009121

FRONT LAMP,12V, 21W, Amber/Clear

LH

1шт.

14

82009122

FRONT LAMP,12V, 21W, Amber/Clear

RH

1шт.

15

14084114

FLANGE NUT,M5 x .8, Flg

4шт.

16

44995035

FRONT LAMP,Halogen, 12V, Amber/Clear

RH

1шт.

17

44995034

FRONT LAMP,Halogen, 12V, Amber/Clear

LH

1шт.
