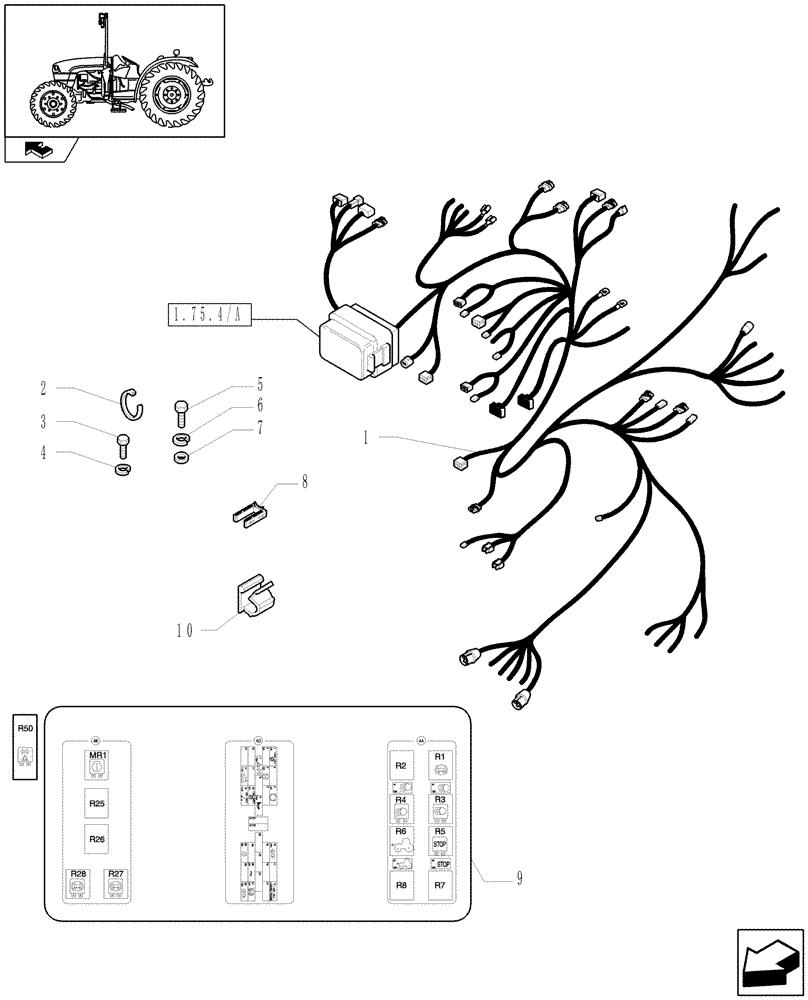

Запчасти Case IH FARMALL 85U (1.75.4/04) - POWER SHUTTLE TRANSMISSION FOR MECHANICAL DRAFT CONTROL - MAIN CABLE - L/CAB (VAR.330114-331114-330279-331279-330299-331299) (06) - ELECTRICAL SYSTEMS

1

87516289

CABLE

Main, Serial Range: -C6877

1шт.

Power Shuttle Transmission for MDC, for NAR, VAR.33114 - 331279 - 331299, for JX85/85U, JX95/95U, JX105/105U Models only

1шт.

1

84384642

CABLE

Main, Start Serial: D6877

1шт.

Power Shuttle Transmission for MDC, for NAR, VAR.33114 - 331279 - 331299, for JX85/85U, JX95/95U, JX105/105U Models only

1шт.

1

87516285

HARNESS

Main, Serial Range: -C6877

1шт.

Power Shuttle Transmission for MDC, for ISO, VAR.330114 - 330279 - 330299

1шт.

1

84384631

CABLE

Main, Start Serial: D6877

1шт.

Power Shuttle Transmission for MDC, for ISO, VAR.330114 - 330279 - 330299

1шт.

2

14560487

CABLE TIE,132.5mm lg

CABLE STRAP

1шт.

3

15901404

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 9.50mm

2шт.

4

14496101

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

3.2 x 7

2шт.

5

14038014

SCREW,M8 x 15mm

M8 x 15

1шт.

6

10615674

WASHER

D=8

1шт.

7

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

8

87318389

LOCKING DEVICE

2шт.

9

87662470

DATA PLAQUE

1шт.

10

5182865

CLIP

1шт.
